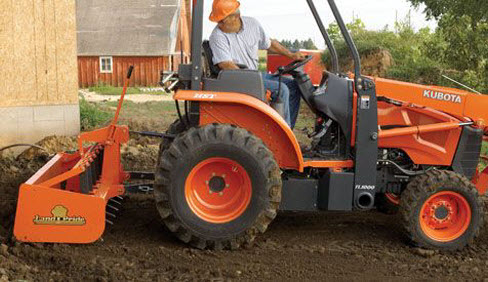

Land Pride MR1572
MR15 Series Box Scrapers MR1572
Overview:
The easy and convenient retractability of the scarifier shanks on the MR1572 makes them highly productive and ideal for ripping, leveling, finish grading, and back-filling applications at commercial feedlots, outdoor arenas, building sites, and maintenance operations on farm and ranch lanes or roadways or constructions... + Read More
Features
| FEATURES | BENEFITS |
| 3/8" Heavy side panels | Built heavy to handle the tough jobs. |
| Mechanical vertical lift shank tube or hydraulic pivot shank tube |
Retractable mode can be purchased with manual or hydraulic option. |
| Clevis type lower 3-point hitch | Allows for easier hook-up of the tractor’s lower draft arms. |
| 4 Positions heat treated spring steel shanks |
Offers flexibility for deep to shallow settings and Heat-treated for longevity |
| Working widths | MR1572 = 72" HR2572 = 72" |
| HP range | MR1572: 20-40 hp 4 wheel drive; 30-50 Hp 2 wheel drive HR2572: 30-60 hp 4 wheel and 2 wheel drive |
| Roll-formed moldboard | Roll-formed moldboard keeps materials flowing which puts less drag on the Box Scraper, resulting in lower HP requirements and faster working conditions. |
| 19" High MR1572 moldboard 21" High HR2572 moldboard |
High material capacity |
| Heat treated dimpled on tips | Easy to replace tips that are heat treated for toughness. |
| Heat-treated, reversible and replaceable cutting edges |
Heat-treated for hardness. Reversible so both edges can be used before replacing the cutting blades. |
| Rear backfill blade | Rear backfill blade allows for backfilling trenches or foundations. |
| Warranty | One year parts & labor. |
| Category I 3-point hitch with Quick Hitch capability |
Fits a wide variety of tractors. Quick hitch capability allows for easy hook-up. |
| Positive Locking System | Shanks are kept in the up or down position with a positive locking system. This keeps the scarifier bar from bouncing in transport, and tight during field use. |
| Heavy duty Shank bumpers MR1572 HR2572 |
3/4" x 7/8" U-shaped steel bumpers are built tough to support the shank load. 1/2" Square steel bumpers behind each shank provides additional reinforcement. |
Specifications
| Model | MR1575 |
| Working Width | 72" |
| Capacity | 16 cu. Ft. |
| Weight (Pounds) | 615 |
| Number of Shanks | 7 |
| Shank Material | 3/4" x 2 9/16" heat treated spring steel |
| Shank Penetration | 2- Position: 5/8" & 2 5/8" below end plates |
| Shank Tip Construction | Replacable heat treated dimpled-on tips |
| Shank Beam | 4" x 4" x 5/16" Square tubing reimforced with shank support lugs at each shank |
| Left Mechanism | Mechanical lever lift with spring assist |
| Moldboard | Roll-Formed Moldboard - 18 1/2" high |
| Side Panels | 3/8" thick x 18" high x 27 1/2" deep |
| Depth of Bucket | 24" |
| Cutting Blades | 2 ea. 1/2" x 6" high carbon, heat treated cutting edges; reversible and replaceable |
| Maximum H.P. Rating | 40 HP for 4 wheel and 50 Hp for 2 wheel tractors |
| 3-Point Hitch Type | Category I (Fits Land Pride Quick Hitch) |
