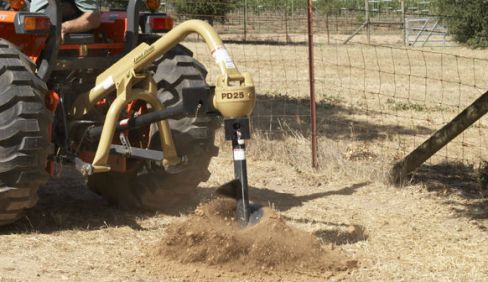

Land Pride PD25
PD25 Series Post Hole Diggers PD25
Overview:
Nurseries, tree farms, landscapers, contractors, construction companies, farmers, ranchers and municipalities will find the Land Pride PD25 Series Post Hole Diggers a good fit for their heavy-duty applications. The PD25 Series is designed for Category 1 or 2 three-point attachment, offers a 48" auger length, and a choi... + Read More
Features
| Features | Benefits |
| Cat. 1 or 2 Hitch | Fits a wider variety of tractors by fitting Cat. 1 & 2 |
| 2 7/8" Yoke | 3/16"+ Wall thickness for strength |
| 3 1/2" Reinforced boom | 7/32" Wall with 3/8" x 2" bar for strength |
| Auger flighting | Constant thickness on 1/4" flighting vs. tapered. |
| Replaceable hardened steel points on auger | Hardened points will last longer than non-hardened. Points can easily be replaced when worn or damaged. Cast steel auger fishtail tips. |
| Gearbox HP rating | 25 Series: 25-55 HP and 35 Series: 30-75 HP. |
| 2" Output shaft | Fits most other auger manufacturers for users who don’t need a new auger |
| 5 Year gearbox warranty | Shows our confidence in the gearbox integrity. |
| Cat. 3 driveline with shear-pin or optional radial pin clutch | Protection against obstructions. Radial pin works like a ‘ratchet’ to continually put driving force on the auger in tough conditions. |
| Large selection of augers | Variety of Dirt Auger and Rock Auger sizes and styles to suit many applications. |
| Large selection of Bolt-on Rock Heads (accessory) |
All sizes of Land Pride PD25 and PD35 Pengo Dirt Augers can be converted to Rock Augers with this accessory. |
| Alignment handle (optional) | Guide the auger from the tractor seat. |
| Down pressure kit (optional) | Allows additional force to be supplied, hydraulically, to the beam to help force digger into the ground. |
| Post Hole Digger stand (optional) | Bracket mounted to bottom of gearbox can incorporate a Post Hole Digger stand. This allows operator to hook up and unhook from tractor more safely. Stand supports unit and will store unit when it is not on the tractor. |
Specifications
| Model | PD25 |
| Tractor HP Range | 25 to 55 HP |
| Weight Without Auger | 186 lbs |
| Auger Length | 48" |
| Auger Flight Thickness | 1/4" |
| Auger Pipe | 2 1/2" ID |
| Auger Teeth | Forged, Individually Replaceable; 40 Degree angle installed on flat side; 50 Degree angle installed on angled side |
| Number of Teeth | (6" - 2 teeth) (9" & 12" - 4 teeth) (15" - 5 teeth) (18" - 6 teeth) (24" - 8 teeth) |
| Pilot | Cast Steel, 3 Drill points |
| Driveline Cat. | Cat. III Shear bolt - Standard; Cat. III Radial pin clutch - Optional (Recommended on Auger Sizes 15" and above.) |
| Maximum Operating PTO Speed | 300 RPM |
| Gearbox | 1 3/8" 6B spline input shaft, 3.18:1 Ratio |
| Gearbox Oil Capacity & Type | 4.6 Pints of SAE80-90W EP oil |
| Output Shaft | 2" O.D. Round |
| 3-Point Hitch Cat. | Cat. I & II |
| Boom | 3 1/2" O.D |
| Yoke | 2 7/8" O.D. |
