Land Pride PD35
PD35 Series Post Hole Diggers PD35
Overview:

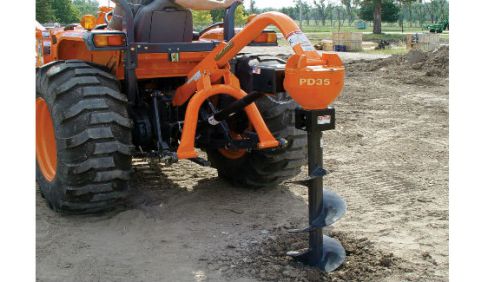

The Land Pride PD35 Series Post Hole Digger is designed to meet the industrial duty applications of landscapers, construction companies, nurseries, ranchers, and farmers. The PD35 is designed for Category 1 or 2 three-point attachment and offers a 48" auger length and 9", 12", 15", 18" or 24" auger flights with cast steel fishtail tips.
Features
| FEATURES | BENEFITS |
| Cat. 1 or 2 Hitch | Fits a wider variety of tractors by fitting Cat. 1 & 2. |
| 2 7/8" Yoke | 3/16”+ Wall thickness for strength. |
| 3 1/2" Reinforced boom | 7/32” Wall tubing for strength. |
| Auger flighting | Constant thickness on 1/4" flighting vs. tapered. |
| Replaceable hardened steel points on auger |
Hardened points will last longer than non-hardened. Points can easily be replaced when worn or damaged. Cast steel auger fishtail tips. |
| 2” OUTPUT SHAFT | Fits most other auger manufacturers for users who don’t need a new auger. |
| 5 Year gearbox warranty | Shows our confidence in the gearbox integrity. |
| Cat. 3 driveline with shear-pin or optional radial pin clutch |
Protection against obstructions. Radial pin works like a ‘ratchet’ to continually put driving force on the auger in tough conditions. |
| Large selection of augers | Variety of Dirt Auger and Rock Auger sizes and styles to suit many applications. |
| Large selection of Bolt-on Rock Heads (accessory) |
All sizes of Land Pride PD25 and PD35 Pengo Dirt Augers can be converted to Rock Augers with this accessory. |
| Alignment handle (optional) | Guide the auger from the tractor seat. |
| Down pressure kit (optional) | Allows additional force to be supplied, hydraulically, to the beam to help force digger into the ground. |
| Post Hole Digger stand (optional) |
Bracket mounted to bottom of gearbox can incorporate a Post Hole Digger stand. This allows operator to hook up and unhook from tractor more safely. Stand supports unit and will store unit when it is not on the tractor. |
Specifications
| Model | PD35 |
| Tractor HP Range | 30 to 75 HP |
| Weight Without Auger | 233 lbs |
| Auger Length | 48" |
| Auger Flight Thickness | 1/4" |
| Auger Pipe | 2 1/2" ID |
| Auger Teeth | Forged, Individually Replaceable; 40 Degree angle installed on flat side; 50 Degree angle installed on angled side |
| Number of Teeth | (6" - 2 teeth) (9" & 12" - 4 teeth) (15" - 5 teeth) (18" - 6 teeth) (24" - 8 teeth) |
| Pilot | Cast Steel, 3 Drill points |
| Driveline Cat. | Cat. III Shear bolt - Standard; Cat. III Radial pin clutch - Optional (Recommended on Auger Sizes 15" and above.) |
| Maximum Operating PTO Speed | 300 RPM |
| Gearbox | 1 3/8" 6B spline input shaft, 4:1 Ratio |
| Gearbox Oil Capacity & Type | 9.1 Pints of SAE80-90W EP oil |
| Output Shaft | 2 O.D. Round |
| 3-Point Hitch Cat. | Cat. I & II |
| Boom | 3 1/2" O.D |
| Yoke | 2 7/8" O.D. |
