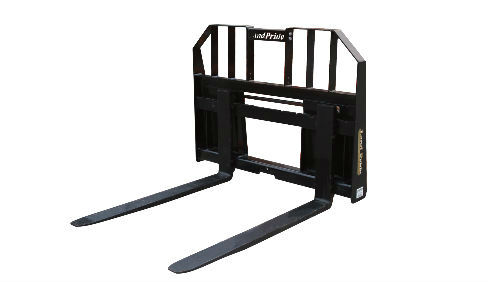

Land Pride PFL3042

Double tap to zoom

Features	Benefits
Skid steer style hitch plates and Euro style hitch plates	The Plate Mounted Pallet Fork can be attached to a wide variety of machines. Note: All PFL series are offered with skid steer style hitch plates. The PFL45, PFL55, and PFL64 Series are also offer with the optional Euro style hitch plates.
Tall rear guard	Keep loads from slipping backwards.
Attaches to power equipment easily	Uses skid steer style hitch design or Euro style hitch design for quick and easy attachment.
Easy adjustable Forks	Forks slide easily on carrying bars from one position to another. Simply rotate locking handles up and slide forks to their new positions. Rotate locking handles down to secure forks in their new position.
Five capacities & three fork lengths	Meets most needs for low cost fork lift handling on customer owned skid steer loader with skid steer style loader hitch or front tractor loaders with either a skid steer style loader hitch or Euro style loader hitch.
2,100 lbs. with 42" forks
3,000 lbs. with 42" & 48" forks
4,500 lbs. with 48" forks
5,500 lbs. with 48" & 60" forks
6,400 lbs. with 48" & 60" forks

Model Number	3042
Side Step
Skid Steer Mount	Yes
Euro Hitch	N/A*
Weight
Skid Steer Mount	340 lbs
Euro Hitch	N/A*
Lift Capacity: Lift capacity is based on load being 24" from face of Frame (Cross bar). Load must be palletized and supported by two forks.	3,000 lbs
Class	II
Frame Width	45 7/8"
Frame Height	37 1/2"
Tine Thickness	1 1/4"
Tine Width	4"
Tine Length	42"
Fork Positioning Lock	Spring Loaded Toggle
