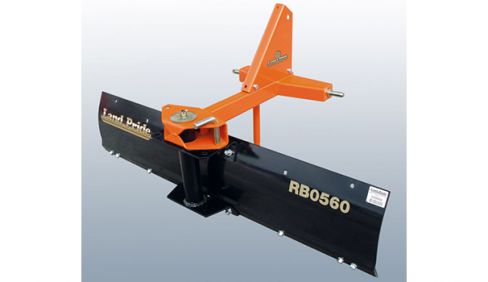

Land Pride RB0560
RB05 Series Rear Blades RB0560
Overview:
Land Pride's RB05 Series Rear Blades are an excellent and economical choice for applications in leveling, finish grading, and back-filling at feedlots, building sites, nurseries, and maintenance operations on small farms and home sites. The RB05 is the perfect companion for your sub-compact tractor.
The multitude of f... + Read More
Features
| FEATURES | BENEFITS |
| Warranty | One year parts & labor. See warranty page for complete details. |
| 48", 60" Working widths | Choice of two sizes to pick from. |
| 17-25 HP rating | Fits a wide variety of small tractors between 17 & 25 HP. |
| Cat. 0 with Cat. 1 pins and Cat. l limited hitch types |
Fits smaller tractors with Cat. 0 hitch & Cat. l limited hitch. |
| Blade angles left and right up to 30° in either direction |
(5 forward positions in 15° increments and 5 reverse positions in 15° increments) Many angles for diverse jobs and results. |
| Blade offsets left and right 10” | Manually adjust offset to move moldboard over and keep hitch centered on tractor. |
| 13 1/2” Moldboard height | Can pull a lot of dirt for a little blade. |
| Heat treated cutting edge | Hard edge protects the moldboard edge. |
| Parking Stand | Store unit with front of hitch off the ground, allows for easier hook-up. |
| Landscape Rake adaptable | 05 Series Landscape Rake element will fit in place of the moldboard for diversity. |
| Skid shoes (optional) | Set depth of blade to clear obstructions like manhole covers, street cracks. |
Specifications
| Model Numbers | RB0560 |
| Blade Width | 60" |
| Approximate Weight (lbs.) | 143 |
| Horsepower Rating | 17-25 |
| Hitch Type | Cat. 0 with Cat. I pins |
| Blade Angle | 5 Forward up to 30°, 5 Reverse up to 30°, Clockwise & Counterclockwise |
| Blade Offset | 10" left or right |
| Moldboard Height | 13 1/2" |
| Moldboard Thickness | 1/4" |
| Cutting Edge | 3/8" x 3" Heat treated Bolt-On; Flat blade (Single bevel) |
| Parking Stand | Retractable |
| Accessories | Landscape Rake Adaptable |
