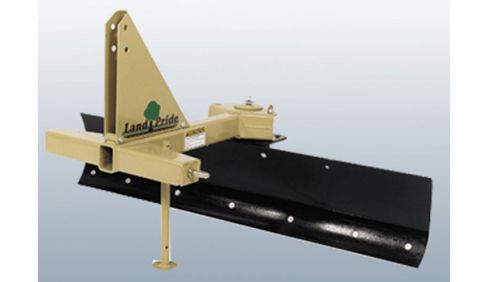

Land Pride RB1560
RB15 Series Rear Blades* RB1560
Overview:
Land Pride's RB15 Series Rear Blades are an excellent and economical choice for applications in leveling, finish grading, and back-filling at feedlots, outdoor arenas, building sites, nurseries, and maintenance operations on farms, ranches, and home owner lanes and roadways. The multitude of forward and reverse working... + Read More
Features
| FEATURES | BENEFITS |
| Warranty | One year parts & labor. |
| 60", 72", 84" Working widths | Choice of three sizes to pick from. |
| 17-40 HP rating | Fits a wide variety of small tractors between 17 & 40 HP. |
| Quick-Hitch | Fits Land Pride Quick-Hitch. |
| Blade angles left and right up to 45° in forward position and 30° in reverse position | (7 Forward positions in 15° increments and 5 reverse positions in 15° increments) Many angles for diverse jobs and results. |
| Blade offsets 12" left and right | Manually move moldboard to cover either tractor tire. |
| 14" High rolled moldboard | Rolled moldboard allows material to flow easily, which means less drag, less HP. 1/4 " Moldboard thickness Is just right for 40 HP work. |
| Reversible cutting edge | For twice the life. |
| Parking Stand | Store unit with front of hitch off the ground, allows for easier hook-up. |
| Skid shoes (optional) | Set depth of blade to clear obstructions like manhole covers, street cracks. |
| Landscape Rake adaptable | Remove moldboard and add rake element to add diversity of frame. |
Specifications
| Model Number | RB1560 |
| Blade Width | 60" |
| Approximate Weight (lbs.) | 248 |
| Horsepower Rating | 17-40 |
| Hitch Type | Cat. 1 (Fits Land Pride Quick-Hitch) |
| Blade Angle | 7 Forward up to 45 degrees, 5 Reverse up to 30 degrees, Clockwise & Counterclockwise |
| Blade Offset | 12" left or right |
| Moldboard Height | 14" |
| Moldboard Thickness | 1/4" |
| Cutting Edge | 1/2" x 6" Heat treated; Replaceable & Reversible (Double bevel) |
| Parking Stand | Retractable |
| Accessories | Skid Shoes & Landscape Rake Adaptable |
