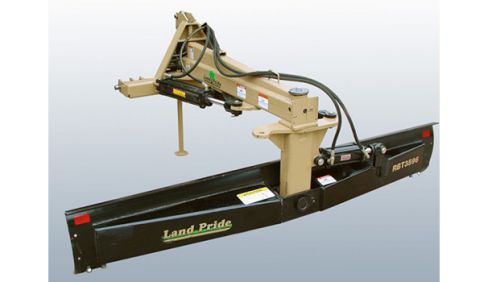

Land Pride RBT3584

New Products / Land Pride / Dirtworking / RBT35 Series Rear Blades / RBT3584

Double tap to zoom

Features
Specifications

Features

FEATURES	BENEFITS
84" & 96" Working widths	Choice of two sizes to pick from. Both sizes handle large capacities.
35 to 80 HP range for 2-Wheel Drive 35 to 65 HP range for 4- Wheel Drive	Fits a wide variety of tractors.
Cat. 1 or 2	Fits wide variety of tractors.
Fits Land Pride Quick-Hitch	Quick and easy attaching without leaving tractor seat.
3-Way Blade	Tilt, angle and offset features available hydraulically or manually.
Blade angles left and right up to 40 degrees manually and up to 50 degrees hydraulically in either direction	(9 positions manually: Center, 4 clockwise and 4 counterclockwise in 10 degree increments) (Hydraulically: Any degree up to 50 degrees) Allows the operator to set the blade at the angle of his choice up to 40 degrees to complete the job with satisfactory results.
Blade offsets left and right up to 30”	(9 positions manually: Center, 4 positions left and 4 positions right) (Hydraulically: Any position up to 30”) Allows the operator to position the end of the moldboard beyond tractor tire and close to solid obstacles such as fences, buildings and abutments.
Blade tilts up and down up to 20 degrees	Allows the operator to do simple tasks such as putting a crown in the middle of a road to making V-type ditches of various sizes.
Fully welded main frame (Tubular construction)	Fully welded adds overall strength and rigidity to blade frame.
Heavy-duty pivot assembly with 3” solid steel kingpin	3/4” Plate steel turntable and 3” kingpin for handling the high amount of torque that can be transferred to this area.
Formed 17 inch Moldboard	Precisely formed moldboard rolls dirt and debris with ease.
5/16” Moldboard thickness with box reinforcement	Thick material with fully welded box reinforcement creates a strong moldboard.
Reversible cutting edge	Get twice the wear from the cutting edge by flipping it over.
Retractable parking stand	Able to store the unit with the frame off the ground, also aids in attaching to tractor.
Accessories
Skid shoes	Skid shoes help protect from hitting low obstructions by keeping the moldboard off the ground.
End plates	End plates hold material in and allows it to be moved.
Cushion valve	Helps protect the moldboard and cylinders in the event an obstruction is hit by allowing hydraulic fluid to bypass the cushion valve and flow back towards the tractor.

Specifications

Model	RBT3584
Blade Width	84"
Approximate Weight (lbs.) with manual links	709 lbs.
Maximum Tractor Horsepower	Maximum Tractor Horsepower
Maximum G.V.W. (lbs.)	9500 lbs.
Hitch Type	Cat. 1 & 2 Fits Land Pride Quick-Hitch
Blade Angle Manual Linkage: Hydraulic Cylinder:	With blade facing forward or reversed Up to 40o in 10o increments clockwise and counterclockwise Up to 50 degrees clockwise and counterclockwise
Angle Cylinder	3 1/2" X 14" X 1 1/4"
Blade Offset Manual Linkage Hydraulic Cylinder	Up to 30 inches left and right in 9 positions (Center, 4 left and 4 right) Up to 30 inches left and right
Offset Cylinder	3 1/2" X 14" X 1 1/4"
Blade Tilt Manual Ratchet Jack Hydraulic Cylinder	Maximum 20o up and 20o down with blade facing forward or reversed Maximum 20o up and 20o down with blade facing forward or reversed
Tilt Cylinder	2" X 6" X 1 1/4"
Moldboard King Pin	3" diameter
Moldboard Height	17" tall
Moldboard Thickness	5/16" reinforced, 3/16" tapered reinforcement channel
Cutting Edge	1/2" x 6" Heat treated, Replaceable & Reversible (Double bevel)
Main Frame Construction	Fully Welded Tubular Construction
Parking Stand	Retractable
Accessories	Manual or Hydraulic Single Gauge Wheel Skid Shoes, End Plates, Hydraulic Selector Valve and Cushion Valve
