Land Pride SGC1072

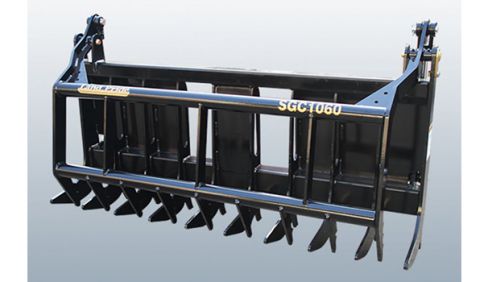

SGC10 Series Claw Grapples SGC1072
Overview:
The SGC10 Series Claw Grapple makes quick work of large jobs, and can be used to rake, dig, and move rocks, trees, brush, and construction debris without picking up dirt. The compact design minimizes weight while preserving lift capacity.
Features
| Features | Benefits |
| Attaches to power equipment easily | Uses universal quick hitch design for quick and easy attachment. |
| Universal quick hitch option or old style Kubota B Series hitch option | The quick attach plate mounted grapple can be attached to a wide variety of machines |
| No mount option | This option has no mount on the back of the grapple and allows the customer to install a mount of their preference. |
| Designed to protect hydraulic hoses | Hydraulic hoses routed to prevent pinching. |
| Greasable hardened bushings at upper grapple pivot locations | Bushings can be replaced if needed. |
| 1" Pivot pins | Large diameter pins for extra strength. |
| Dual hydraulic cylinders | Allows upper claw to grip the material better |
| AR400 teeth material | More than double the strength of mild steel. |
| Hardened bushing at cylinder mount points | Bushings can be replaced if needed. |
| High volume cage design | Can handle large volume of material. |
| Rear facing lower teeth | Can be used for pulling roots or back dragging. |
Specifications
| Model | SGC1072 |
| Weight Universal quick hitch Kubota B Series hitch |
447 lbs 436 lbs |
| Width | 75" |
| Closed height | 34 1/8" |
| Jaw opening | 39 1/2" |
| Number of teeth | 12 Bottom & 11 Top |
| Teeth spacing | 6 3/8" Bottom & 6 1/4" top |
| Tooth thickness for upper and lower jaws |
All outside teeth are 1/2" thick All teeth between outside teeth are 3/8" thick |
| Working length of teeth | 11 1/2" |
| Hydraulic cylinder | 2" x 6" x 1 1/8" Rod |
| Maximum pressure rating | 3500 psi |
