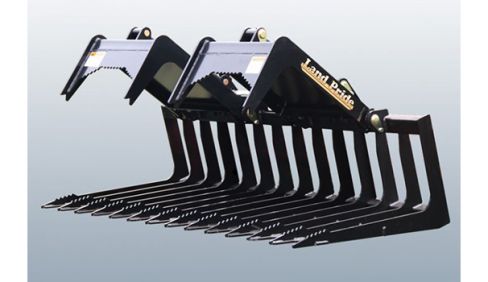

Land Pride SGS1578
SGS15 Series Skeleton Grapples SGS1578
Overview:
Let the SGS15 Series Skeleton Grapple do the digging for you by removing roots, brush, and other timber or debris. The SGS15 offers 5-1/2" spacing between the teeth, smaller debris is sifted. Dual hydraulic cylinders can close at various gaps to handle irregular shapes, and serrated teeth make this grapple a workhorse ... + Read More
Features
| FEATURES | BENEFITS |
| Attaches to power equipment easily | Uses Skid Steer Quick Hitch design for quick and easy attachment. |
| Designed to fit Skid Steer Loaders and Front Tractor Loaders | The quick attach plate mounted grapple can be attached to a wide variety of machines. Note: Tractor Loaders must be fitted with a Skid Steer universal quick attach mounting system. |
| Designed to protect hydraulic hoses | Hydraulic hoses routed to prevent pinching. |
| Greasable hardened bushings at all pivot points | Bushings can be replaced if needed. |
| 1 1/4" Pivot pins | Large diameter pins for extra strength. |
| Two cylinder independent grapples | Able to secure uneven loads. |
| Grade 80 teeth material | More than double the strength of mild steel. |
| Front gusseted tines | Strengthens tine tips. |
| Open bottom and back | Allows dirt to fall through tines. |
| Optional cylinder shields | Protects hydraulic cylinder and fittings. |
Specifications
| Model | SGS1578 |
| Weight | 732 lbs. |
| Width | 78 3/4" |
| Closed Height | 30 3/4" |
| Number of Teeth | 14 |
| Teeth Spacing | 5 1/2" |
| Tooth Thickness | 3/8" |
| Working Length of Teeth | 34 3/4" |
| Hydraulic Cylinder | 2" x 8" x 1 1/4" Rod |
| Maximum Pressure Rating | 3500 psi |
