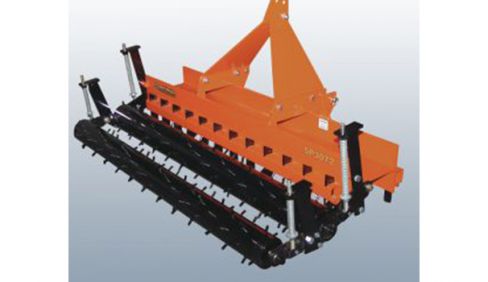

Land Pride SP3084

Double tap to zoom

FEATURES	BENEFITS
Working widths	20 Series: 60”, 72”; 30 Series: 72”, 84”
HP Range	20 Series: 20-35 HP; 30 Series: 30-50 HP
Replaceable heat-treated sleeves	Heat-treated replaceable sleeves on roller protect spike. Easily replace the sleeve when worn vs. replacing entire spike.
3/8” Steel spikes welded to the roller’s surface	Spikes are welded to the roller’s surface rather than to a hole. Damaged spikes can be cut off and replaced.
Self-aligning bearings with double lip seals on rear roller	Self-aligning bearings conform to the roller and shafts.
1” Diameter shaft in roller	Heavy shaft can handle the shock loads from the roller.
Roller has high number of steel spikes	Better pulverization, more spikes than most competitors
H Beam	20 Series: H Beam-10”; 30 Series: H Beam-12”
10 1/2” x 2” x 2 ” Scarifier teeth	Scarifier teeth are heat-treated for long life and can be reversed when one side wears down.
Warranty	One year parts and labor
Fits Land Pride Quick-Hitch	Cat. 1 3-point fits Land Pride Quick-Hitch for easy on-off with one person.

Model	SP3084
Working Width	84"
Overall Width	89 1/4"
Weight (With Single Roller - lbs)	721
Max Engine Hp.	50 HP
Number Of Shanks	29
Number Of Spikes - Single Roller	116
Number of Spikes - Double Roller	232
Height	36 1/2"
Front to back length - single roller	28 1/4"
Front to back length - double roller	35 1/4"
Shank Spacing	2 13/16"
Spiked Roller Tube Diameter	6 5/8" O.D. (Optional Second Roller 5 9/16")
H-Beam	12"
A-Frame	3/8" Plate
Springs - Front Roller	32 lbs/inch
Springs - Back Roller	15 lbs/inc
Spike Material	3/8" x 1 1/4" Steel, Replaceable Heat Treated Sleeves
Hitch	Cat. I
