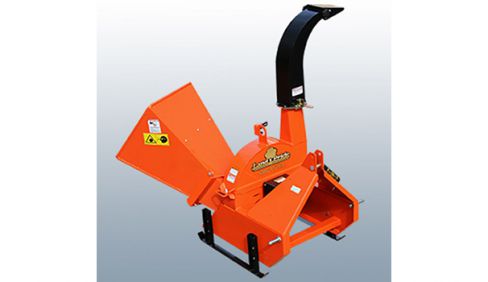

Land Pride WC1504
WC1504 Wood Chippers WC1504
Overview:
Land owners can utilize a Land Pride Wood Chipper and their subcompact tractor to quickly turn mountains of limbs into chips for mulch or just to aid in decomposition. Driven by the tractor's PTO, this unit features a self-feeding 4" cutting capacity, four reversible and replaceable hardened-steel knives, adjustable di... + Read More
Features
| Features | Benefits |
| Quick Hitch Adaptable | Quickly and easily attach chipper to tractor with one person. |
| 1/4" Thick Rotor Knife | Rotor features 4 replaceable 1/4" hardened steel cutting edges. |
| Rotor Knives Can Be Rotated When One Cutting Edge Is Worn | Each rotor knife has two cutting edges to extend rotor knife life. When one edge is worn, rotate rotor knife 180° to a new cutting edge. Less downtime required to sharpen rotor knives. |
| Rotor Knives Are Replaceable | Can replace rotor knives when all cutting edges are worn out |
| 4-Bolt Flanged Bearings | Improves bearing life |
| Cat. 4 Shear-Bolt Driveline | Shear-bolt protects the unit when obstructions are encountered |
| Skid Extension Supports | Allows the unit to sit on the ground while keeping the driveline near level. Extends life of driveline u-joints. |
| Adjustable Rotating Discharge Chute With Rotation Stops | Directs direction wood chips will be discharged. Chute rotate stops keep the chute from discharging chips toward the operator feeding product toward the feed chute. |
| Adjustable Deflector Chute | Helps control the distance wood chips will be discharged away from the Wood Chipper. |
| Self-Feeding System | Product is pulled in by the sharp cutting edges with each pass of a rotor knife. Operator can be retrieving the next object to load while the unit is chipping the last limb loaded into the feed chute. |
Specifications
| Model | WC1504 |
| HP Required | 20 to 50 HP (Minimum 35 HP for maximum capacity) |
| Weight | 450 lbs. |
| Hitch | Cat. l w/ Quick Hitch capabilities |
| Upper Hitch Plate Thickness | 5/16" |
| Main Frame Thickness | 3/16" |
| Rotor Housing Thickness | 3/16" |
| Driveline Category | Cat. 4 with shear bolt |
| PTO Speed | 540 RPM |
| Rotor Speed | 540 RPM (Direct Drive) |
| Rotor Size | 25" |
| Chip Capacity | 4" |
| Hopper Inlet Opening | 20" x 20" |
| Chipper Inlet Opening | 10" x 4" |
| Spout Discharge Opening | 5 1/4" Square |
| Rotor Knife | Reversible and Replaceable |
| Number of Rotor Knives | 4 |
| Rotor Knife Size | 6" x 2" x 1/4" |
| Rotor Knife Material | Hardened Steel (Specifically designed for chipping) |
| Feed System | Self-feed |
| Feed Height Above Ground | 24" to 30" With adjustable stands |
| Feed Height Adjustment | 6 Settings (Includes without adjustable skids) |
| Chip Chute Position | 270 degrees |
| Discharge Height | 58" to 64" |
| Color | Orange, Green & Beige |
