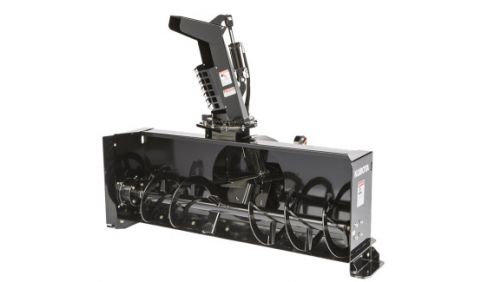

Land Pride SBL2584
SBL25 Series Snow Blowers SBL2584
Overview:
Kubota by Land Pride: Front-mount Snow Blower are fully hydraulic units that include an auger, impeller, chute, and deflector. They feature a 24” impeller and 16” auger. The auger contains 4 paddles to direct snow into the 4-blade impeller to direct the snow into the chute. Available in 66", 74", and 84" widths and thr... + Read More
Features
| Large main housing | Ability to handle large drifts. |
| Large impeller diameter | The ability to move and throw material farther. |
| Level run indicator (Patent-Pending) | Operator can visually verify the Snow Blower is properly leveled before each use. Protects against tilting the auger into concrete/paved surfaces. |
| Hydraulically operated deflector spout | Allows operator to change end of spout up or down from the seat to direct blown snow up close or far away. |
| Hydraulically operated chute rotation with sprocket drive | Allows operator to change direction of snow discharge from the seat. Sprocket drive is built to last. |
| Bolt-on reversible and replaceable cutting edge | Improves service life of Snow Blower by protecting the unit from bottom wear and absorbing some of the shock when hitting solid objects. The blade can be rotated 180o to double its life and can be replaced when both edges are worn out. |
| Greasable auger end bearing | Less drag on the powertrain and extends life of unit. |
| Sprocket driven chute rotator | Allows operator to change chute rotation angle within a 220o discharge pattern. |
| 3/8" Auger Flighting | Stands up to sever use. |
| Options | |
| Quality hydraulic motor available in low, medium, or high volume flow | Provides long life, durable construction. Three flow options allow this Snow Blower to fit many skid steer/tractors. |
| Bolted-on outer skid shoes | Supports cutting-edge above paved, gravel, and rocky surfaces. They are adjustable and replaceable. |
| Inner skid shoes secured with a bent pin. | Supports cutting-edge above paved, gravel, and rocky surfaces. Bent pin makes it easy to change skid shoe height and replace. |
Specifications
| Model No | Model SBL2584 |
| Working Width | 84" |
| Overall Width | 89 1/2" |
| Weight with outside skid shoes, case drain line, couplings, & hydraulic motor | 988 lbs |
| Drive and Control System | Hydraulic motors with electric over hydraulic |
| Hydraulic Requirements: | |
| Low Volume Motor Option | 12 - 19 GPM |
| Medium Volume Motor Option | 20 - 26 GPM |
| High Volume Motor Option | 27 - 33 GPM |
| Hydraulic Pressure Rating | 2500 - 3500 psi |
| Hitch | Skid steer/loader mounting plate |
| Main Housing Material | 10 Gauge |
| Side Plate Material | 3/16" |
| Chute Opening at the Base | 12" |
| Impeller Housing Depth | 10" |
| Impeller Diameter | 24" |
| Number of Impeller Blades | 4 |
| Auger Diameter | 16" |
| Number of Auger Paddles | 4 |
| Cutting edge | Bolt-on, reversible, and replaceable full-length cutting edge |
| Skid Shoes | Bolt-on, adjustable & replaceable |
| Chute Rotation | 220 Degrees (Hydraulically driven sprocket) |
| Spout Deflector | Hydraulic operation |
| Spout Deflector Cylinder | Double acting 2" x 4" x1 1/2" rod |
