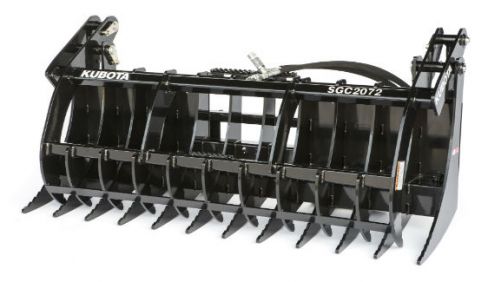

Land Pride SGC2072
SGC20 Series Claw Grapples SGC2072
Overview:
Kubota by Land Pride: Claw Grapples make quick work of large jobs, and can be used to rake, dig and move rocks, trees, brush, and construction debris without picking up dirt. The compact design minimizes weight while preserving lift capacity. Available in 72" or 84" widths, these grapples are made from AR400 high tensi... + Read More
Features
| Attaches to power equipment easily | Uses Skid Steer Quick Hitch design for quick and easy attachment. |
| Designed to fit Skid Steer Loaders and Front Tractor Loaders | The quick attach plate mounted grapple can be attached to a wide variety of machines. Note: Tractor Loaders must be fitted with a Skid Steer universal quick attach mounting system. |
| Designed to protect hydraulic hoses | Hydraulic hoses routed to prevent pinching. |
| Greasable hardened bushings at all pivot locations | Bushings can be replaced if needed. |
| 1 1/4" Pivot pins | Large diameter pins for extra strength. |
| Dual hydraulic cylinders | Allows upper jaw to grip the material better. |
| AR400 teeth material | Stronger than Grade 80 plus increased resistance to abrasion. |
Specifications
| Model Numbers | SGC2072 |
| Weight | 895 lbs |
| Width | 74 1/2" |
| Closed Height | 38 1/2" |
| Number of Teeth | 12 Bottom & 11 Top |
| Teeth Spacing | 6" |
| Tooth Thickness | 1/2" |
| Working Length of Teeth | 14 3/4" |
| Hydraulic Cylinder | 3" x 10" x 1 1/4" Rod |
| Maximum Pressure Rating | 3500 psi |
