Land Pride SGM1578

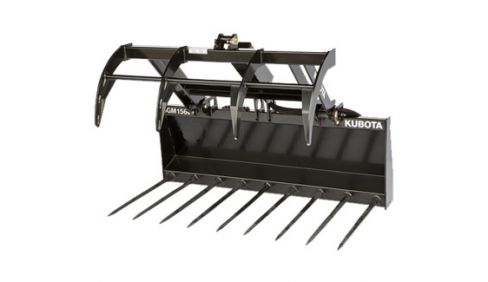

SGM15 Series Manure Grapples SGM1578
Overview:
Kubota by Land Pride: The SGM15 Manure Grapple is a must-have tool for hay moving, barn cleaning, or general yard maintenance. Available in widths of 66", 72" and 78" with 8 to 10 spears, this grapple will make chores around the farm a breeze. Only available through Kubota Dealers.
Features
| Attaches to power equipment easily | Uses Skid Steer Quick Hitch design for quick and easy attachment. |
| Designed to fit Skid Steer Loaders and Front Tractor Loaders | The quick attach plate mounted grapple can be attached to a wide variety of machines. Note: Tractor Loaders must be fitted with a Skid Steer universal quick attach mounting system. |
| Designed to protect hydraulic hoses | Hydraulic hoses routed to prevent pinching. |
| Replaceable spears | Spears can be replaced if damaged. |
| Optional upper grapple fork | Grips the material, increase load capacity and reduces spillage. |
| 1 1/4" Upper grapple pivot pins | Large diameter pins for extra strength |
| Greasable hardened bushings at pivot points | Bushings can be replaced if needed. |
| Optional cylinder shields | Protects hydraulic cylinder and fittings. |
Specifications
| Model Numbers | SGM1578 |
| Lower grapple weight | 455 lbs |
| Number of bottom spears | 10 |
| Spacing of bottom spears | 8 1/8" |
| Bottom spear diameter | 1 3/8" |
| Working length of spears | 30 3/8" |
| Upper grapple fork weight with optional hydraulic cylinder shield | 199 lbs. |
| Number of grapple Teeth | 4 |
| Hydraulic Cylinder | 2" x 8" x 1 1/4" Rod |
| Maximum hydraulic pressure | 3500 psi |
| Optional Hydraulic Hose Kit Part No. 380-062A | 2 fabric protected hydraulic hoses (99" & 109" long), 2 elbows, 2 straight adapters, and 1 1/16" male and female quick couplers. |
