Land Pride DBM2660
DB2660 Ditch Bank Cutter DBM2660
Overview:

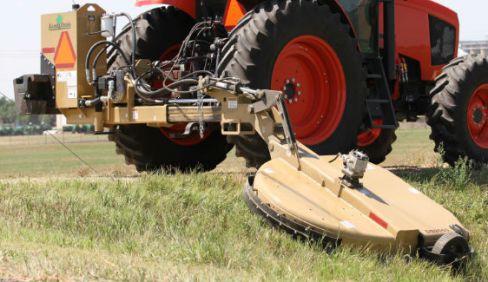

New from Land Pride, the DB2660 Ditch Bank Rotary Cutter complements our growing line of Rotary Cutters. This new hydraulic-driven cutter boasts a number of features that will make mowing ditch banks, pond dams, or other hard to reach inclines fast, easy, and efficient.
Built for either 540 or 1000 RPM tractors, the... + Read More
Features
| Features | Benefits |
| Tractor HP Range | Designed for 75-150 HP tractor with minimum weight of 7,000 lbs. |
| Gearbox HP Rating | 150 HP |
| 3 Point Design | Does not require a dedicated tractor. Three point hook up is easy to hook up and remove from tractor. |
| Cutter Deck Visibility | Visibility of the cutter deck is captured from the operator’s seat. Easy to see operation. Operator does not have to look behind. |
| Factory Assembled | Arrives ready for the customer, saves time and money. (Excluding gauge wheel options and fluids.) |
| Grease Ports | All grease ports are easily accessible for servicing. |
| 10' Transport Width | Folds up close to the tractor. No weight brackets or decks hanging away from the tractor. Typically, not much wider than the tractor, which means safer transporting. |
| Extension Arm Design | One cylinder used to adjust extension arm horizontally 32" is easy to operate. |
| Long Horizontal Reach | Good access for reaching vegetation far away from the tractor. |
| Above Grade Vertical Reach | Good access for reaching up embankments and cutting low over hanging limbs. |
| Below Grade Reach | Good access for reaching down embankments. |
| 175 Degree Deck Rotation Angle | Cutter head can be positioned to reach different angles. |
| Cat. 2 & Cat. 3 with Quick Hitch 540 rpm or 1000 rpm |
Fits a wide variety of tractors. |
| 35 Gallon Oil Reservoir | Large reservoir maintains optimum fluid temperatures and also serves as counterweight. |
| 1" Cutting Capacity | Good for trimming brush. |
| High Blade Tip Speed | 15,600 FPM tip speed means cleaner cutting. |
| One Parking Stand | Easy to adjust 3-point hitch level for unhooking tractor. |
| In-line Filter | Cleans hydraulic fluid before it re-enters the reservoir. |
| Shut-off Valve | Permits maintenance with minimum oil loss. |
| Built-in Auxiliary Weight Rack on Left Side |
Suitcase weights can be added to left side for balance. Able to choose the weight bracket to match various types of suitcase weights. |
| Oil Pressure Gauge | Easily monitor oil pressure for optimum performance of unit. |
| Pressure Relief Valve | Protects against high hydraulic fluid pressure. |
| Gauge Wheels Option | Deck floats on gauge wheels eliminating frequent deck positioning and vigilant watch for changes in ground contour under the tractor and/or deck. |
| SMV Mounting Socket (Standard) SMV Sign (Accessory) |
SMV mounting socket receives most SMV signs equipped with a mounting blade for ease of attachment and removal when transporting on a truck or trailer. SMV sign is offered as an accessory when the tractor’s SMV sign and mounting blade does not fit the cutter’s standard SMV mounting socket. |
Specifications
