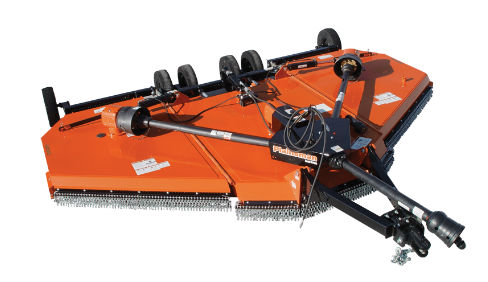

Land Pride RC3615

Double tap to zoom



Features

Features Benefits
Surpassed rugged
industry standards
All Land Pride Rotary Cutters have been designed and tested and meet rigorous
voluntary testing procedures.
Factory assembled Arrives for quick and easy set-up. Minimal time is wasted setting or prepping the unit.
5 Year gearbox warranty Shows confidence in gearbox integrity.
Rugged heavy built gearboxes Capable of handling heavy cutting applications.
Gearbox seal protection Gearbox bottom seal protection for longer bearing life.
2 Piece shield on wing gearboxes Driveline grease zerks are easier to access.
LP Performance self-leveling hitch Reduces drawbar wear by keeping hitch level while going through ditches.
Low hitch weight on tractor tongue Ideal for smaller hp tractors by reducing the amount of weight on the drawbar.
Narrow A-frame hitch Allows for a tighter turning radius.
Adjustable park jack angle Park jack can be adjusted to be perpendicular to the ground.
Adjustable driveline hanger Serves as a support rest for the driveline when the cutter is unhooked from the tractor. Assist operator when attaching driveline to tractor power take-off shaft.
Input driveline:
Cat. 6 CV or Cat. 5 Conventional
Driveline is matched just right for capacity of tractor. Constant velocity (CV) U-joint
allows for 80 degree turns without doing damage to the driveline.
Cat. 5 intermediate & Cat. 4 wing
drivelines with slip-clutches
Driveline is sized right for the intended cutting capacity. Slip-clutch will slip under load
instead of twisting the driveline.
Grease zerks on end caps of driveline cross journals Intermediate and wing driveline cross journals are easier to grease.
High Blade tip speed Allows clean cutting of material.
6" Blade overlap Eliminates skipping during turns.
3/16" Round stump jumper Standard thick stump jumper material keeps damage to a minimum.
Smooth top design Reduces accumulation of debris and is easier and faster to clean.
Deck sheet tops are 100% welded Makes center decks and wing decks stronger
Left wing rotates clockwise Better discharge of material. Picks up tractor tracks.
1/4" Sidewall thickness Increased thickness reduces damage from objects being thrown into deck sidewalls.
Beveled skid shoes on wings Reduces gouging the ground when turning.
LED signal lights LED lights are bright, long lasting, and resistant to vibration, unlike incandescent counterparts.
Hinged wing sections Allows cutter to follow terrain. Ideal for rough ground where hillsides, ditches, and hollows can cause uneven cutting.
1" Solid hinge rods Larger diameter hinge rod gives greater strength to the cutter from front to rear, and in the hinge area itself.
Wing transport locks Wing transport locks will hold wings in the folded position in the event of hydraulic loss.
Enclosed dual leveling rods Cutter pulls equally on the rear axle while traveling over rough terrain.
5-Bolt hubs 5-Bolt hubs makes the wheel assembly more durable and longer lasting.
Drain holes in wheel rims Allows water to drain from wheels mounted on folded-up wings. Helps prevent paint deterioration and rusting to the wheel rims.
Spring cushioned center-axle Protects unit from bumps and ground shock.
Replaceable wheel spindles Wheel spindles can be replaced when damaged without replacing entire axle assembly
Wheel options Laminated tires: Eliminates flats.; Air-filled tires: Give better cushion while transporting.; Foam-filled tires: Give better cushion while transporting and can’t go flat.
LP Performance hitch option Great for uneven terrain, reduces drawbar wear. Hitch pivots freely up and down and pivots about the tractor drawbar.
Bar-tite hitch option Ideal for extreme conditions. Clamps tight to drawbar eliminating drawbar wear.

Specifications

RC3615Specs
