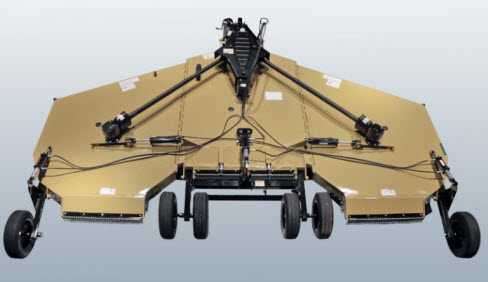

Land Pride RCM3620

Double tap to zoom



Features

Features Benefits
Surpassed rugged
industry standards
All Land Pride Cutters have been designed and tested and meet rigorous voluntary
testing procedures.
Factory assembled Saves customer set-up time and money. Adjustments should always be made by dealer.
7 Year gearbox warranty* Shows confidence in gearbox integrity.
250 HP divider gearbox
130 HP center & wing gearboxes
A rugged heavy-built gearboxes capable of handling heavy-cutting applications.
Gearbox Seal Protection Gearbox bottom seal protection for longer bearing life.
2" Output gearbox shaft Large output shaft handles shock loads better.
Input driveline:
Cat. 6 CV or Cat. 5 Conventional
Holds up to shock loads and harsh mowing conditions.
Easy Greasable drivelines Drivelines have access holes for greasing the U-joints and to grease the inner profiles.
2 or 4 Plate slip-clutch Protects drivelines and gearboxes by slipping clutches rather than twisting the driveline
when impacts are encountered.
High blade tip speed Allows clean cutting of material & even distribution. See Specifications for actual FPM.
6" Blade overlap Eliminates skipping during turns.
Good cutting capacity Can cut brushy areas with saplings up to 2".
13" Deck height Handles heavy cutting, which reduces balling-up of cut material under the deck.
10 Ga. stump jumper backed with a
1" x 4 1/2" thick blade mounting bar
Heavy round stump jumper for protecting the gearbox seal and gearbox output shaft.
Can hold up to tough conditions.
Spindle Nut Protected Spindle nut and threads extending beyond the nut are guarded to protect against
damage from hitting solid objects.
10 gauge smooth deck top Reduces accumulation of debris and is easier and faster to clean.
1/4" side skirt Reduces debris piercing possibilities.
Self-leveling hitch Reduces drawbar wear by keeping hitch level while going through ditches.
Hinged wing sections Allows cutter to follow terrain. Ideal for rough ground where hillsides, ditches, and
hollows can cause uneven cutting.
1" Solid hinge rods Larger diameter hinge gives greater strength to cutter and hinge area.
Wing transport locks Holds transport wings in the folded-up position in case of hydraulic pressure loss.
Enclosed front to rear dual leveling
rods
Dual leveling rods enable the cutter to pull equally on the rear axle during travel over
rough terrain. Many competitors only use one leveling rod.
5-Bolt hubs 5-Bolt hubs makes the wheel assembly more durable and longer lasting.
Drain holes in wheel rims Allows water to drain from wheels mounted on folded-up wings.
Helps prevent paint deterioration and rusting to the wheel rims.
Spring-cushioned center axle Protects unit from bumps and ground shock, cushions loads on drawbar.
Replaceable wheel spindles Wheel spindles can be replaced when damaged without replacing the entire axle.
Simply remove one bolt to replace damaged spindle.
Rephasing lift cylinders Allows cutter to be leveled using hydraulic cylinders verse mechanical turnbuckles.
7/8" Leveling rods Large diameter leveling rods provide superior supporting strength over rough terrain.
Double swivel hitch option Great for uneven terrain, reduces drawbar wear. Must use spacer washers on drawbar.
LP Performance Hitch option Great for uneven terrain, reduces drawbar wear. Hitch pivots freely up and down and pivots about the tractor drawbar.
Bar-tite hitch option Ideal for extreme conditions. Clamps tight to drawbar eliminating drawbar wear.
LED Signal lights LED lights are bright, long lasting, and resistant to vibration, unlike incandescent counterparts.
Wheel options Laminated tires: Eliminates flats.
Airplane tires without foam filling: Give better cushion while transporting.
Airplane tires with foam filling: Give better cushion while transporting & can’t go flat.
Deck rings (optional) Keeps blades from damaging the deck.
