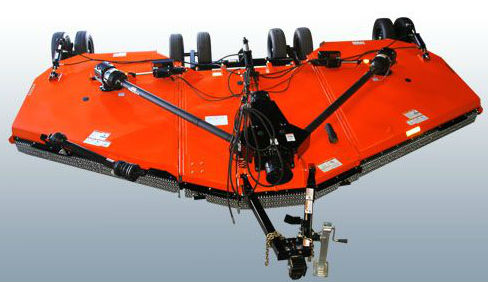

Land Pride RCM4620
RC4620 Rotary Cutter RCM4620
Overview:
Land Pride is pleased to introduce our new 20-foot RC46 Series Rotary Cutter to complement our broad line of folding cutters. This new cutter, also available in a single wing, 14-foot and 1000 RPM models, is designed for use in contract- and municipal mowing applications. Right of ways, roadsides, pastures, open areas,... + Read More
Features
| Features | Benefits |
| Surpassed rugged industry standards | All Land Pride Rotary Cutters have been designed and tested and meet rigorous voluntary testing procedures according to ISO 4254-13. |
| Factory assembled | Saves customer set-up time and money. Adjustments should always be made by dealer. |
| 7 Year gearbox warranty* | Shows confidence in gearbox integrity. Years 6 & 7 parts only |
| 250 HP divider gearbox 210 HP center & wing gearboxes | Rugged heavy-built gearboxes capable of handling heavy-cutting applications. |
| Gearbox seal protection | Gearbox bottom seal protection for longer bearing life. |
| 2 3/8" Output gearbox shaft | Large output shaft handles shock loads better. |
| Input driveline: Cat. 6 CV or Cat. 5 Conventional | Holds up to shock loads and harsh mowing conditions. |
| Easy greasable drivelines | Drivelines have access holes for greasing the U-joints and to grease the inner profiles. |
| 4 Plate slip-clutch | Protects drivelines and gearboxes by slipping clutches rather than twisting the driveline when impacts are encountered. |
| High blade tip speed | Allows clean cutting of material & even distribution. See Specifications for actual FPM. |
| 6" Blade overlap | Eliminates skipping during turns. |
| Good cutting capacity | Can cut brushy areas with saplings up to 3". |
| 13" Deck height | Handles heavy cutting, which reduces balling-up of cut material under the deck. |
| Diamond shaped blade holder | Heavy diamond shaped blade holder for protecting the gearbox seal and gearbox output shaft. Can hold up to tough conditions. |
| Optional dishpan | Dishpan provides extra protection against stumps and other protrusions. Excluding the dishpan eliminates grass/dirt buildup which can cause vibration. |
| Spindle Nut Protected | Spindle nut and threads extending beyond the nut are guarded to protect against damage from hitting solid objects. |
| Shredder Blade Kit (Optional) | Ideal for cutting residue into smaller pieces. Replaces standard blade bar/dish configuration. |
| 10 gauge smooth deck top | Reduces accumulation of debris and is easier and faster to clean. |
| 1/4" side skirt | Reduces debris piercing possibilities. |
| Self-leveling hitch | Reduces drawbar wear by keeping hitch level while going through ditches. |
| Hinged wing sections | Allows cutter to follow terrain. Ideal for rough ground where hillsides, ditches, and hollows can cause uneven cutting. |
| 1" Solid hinge rods | Larger diameter hinge gives greater strength to cutter and hinge area. |
| Wing transport locks | Holds transport wings in the folded-up position in case of hydraulic pressure loss. |
| Enclosed front to rear dual leveling rods | Dual leveling rods enable the cutter to pull equally on the rear axle during travel over rough terrain. Many competitors only use one leveling rod. |
| 5-Bolt hubs | 5-Bolt hubs makes the wheel assembly more durable and longer lasting. |
| Drain holes in wheel rims | Allows water to drain from wheels mounted on folded-up wings. Helps prevent paint deterioration and rusting to the wheel rims. |
| Spring-cushioned center axle | Protects unit from bumps and ground shock, cushions loads on drawbar. |
| Replaceable wheel spindles | Wheel spindles can be replaced when damaged without replacing the entire axle. mply remove one bolt to replace damaged spindle. |
| Rephasing lift cylinders | Allows cutter to be leveled using hydraulic cylinders versus mechanical turnbuckles. |
| 7/8" Leveling rods | Large diameter leveling rods provide superior supporting strength over rough terrain. |
| LP Performance Hitch option | Great for uneven terrain, reduces drawbar wear. Hitch pivots freely up and down and pivots about the tractor drawbar. |
| Bar-tite hitch option | Ideal for extreme conditions. Clamps tight to drawbar eliminating drawbar wear. |
| Roadway light kit option | Allows operator to transport on public roads safer when headlights are turned on and/or when flasher lights are turned on. |
| Wheel options | Laminated tires: Eliminates flats. Air-filled tires: Give better cushion while transporting. Foam-filled tires: Give better cushion while transporting & can’t go flat. |
| Deck rings (optional) | Keeps blades from damaging the deck. |
Specifications
