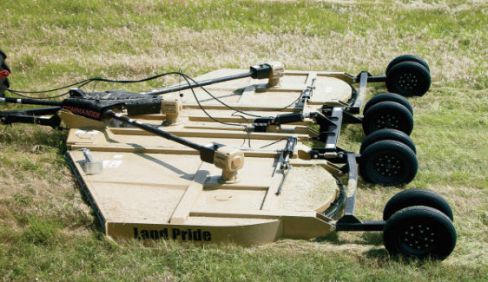

Land Pride RC5020
RC5020 Rotary Cutters RC5020
Overview:
The heavy duty RC5020 and RCM5020 Series Rotary Cutters are designed and built by Land Pride to provide excellent cutting performance on gently sloping or slightly contoured right of ways, roadsides, pastures, setaside acres, or for residue in row crop fields. The 20’ cutting width, 2" to 14" cutting height and ability... + Read More
Features
| Features | Benefits |
| Surpassed rugged industry standards |
All Land Pride Cutters have been designed and tested and meet rigorous voluntary testing procedures specified by ANSI. |
| Factory assembled | Saves customer set-up time and money. |
| Fully welded deck | Fully welded deck adds strength. |
| 7 Year gearbox warranty* | Shows confidence in out gearboxes. |
| 250 HP Divider gearbox 210 HP center & wing gearboxes |
A rugged heavy built gearboxes capable of handling heavy cutting applications. |
| Gearbox seal protection | Gearbox bottom seal protection for longer bearing life. |
| Input driveline: Cat. 6 CV or Cat. 5 Conventional |
Holds up to shock loads and harsh mowing conditions. Fits wide range of tractors including high horsepower tractors. |
| Star profile drivelines | Star profile spreads load out to many points on the shaft. More apt to resist bending and twisting under shock loads and harsh mowing conditions. |
| Easy greasable drivelines | Drivelines have access holes for greasing the U-joints and to grease the inner profiles. |
| 4 Plate slip-clutch | Protects drivelines and gearboxes by slipping clutches rather than twisting the driveline when impacts are encountered. |
| High blade tip speed | 540 rpm: Center: 17,377 fpm, Wings: 17,329 fpm 1000 rpm: Center: 18,165 fpm, Wings: 15,013 fpm Allows for a clean cut of material and even distribution. |
| 6" Blade overlap | Generous blade overlap eliminates skipping, especially in turns. |
| High cutting capacity | Can cut brushy areas with saplings up to 3". |
| Left wing rotates counterclockwise | Better discharge of material. Picks up tractor tracks. |
| 10 1/2" Deck height | Handles heavy cutting, which reduces balling-up of cut material under the deck. |
| 3/16" Stump jumper backed with a 1" thick mounting bar |
Heavy round stump jumper with bottom gearbox seal protector. Can hold up to tough conditions. |
| 3/16" Deck thickness | Heavy enough to handle conditions but not weigh unit down. |
| Self-leveling pull-type hitch | Reduces drawbar wear by keeping hitch level while going through ditches. |
| LED Signal lights | LED lights are bright, long lasting, and resistant to vibration, unlike incandescent counterparts. |
| Hinged wing sections | Allow cutter to follow terrain. Ideal for rough ground where hillsides, ditches, and hollows can cause uneven cutting. |
| 1" Solid hinge rods | Larger diameter hinge rod gives greater strength to the cutter from front to rear, and in the hinge area itself. |
| Wing transport locks | Safety feature. Holds wing sections up in case of hydraulic pressure loss. |
| Enclosed front to rear dual leveling rods |
Dual leveling rods enable the cutter to pull equally on the rear axle during travel over rough terrain. Many competitors only use one leveling rod. |
| Drain holes in wheel rims | Allows water to drain from wheels mounted on the folded-up wings. Helps prevent paint deterioration and rusting to the wheel rims. |
| 5" Square rear axle tubing | Heavy axle to handle harsh conditions. |
| Spring-cushioned center-axle | Protects unit from bumps and ground shock. |
| Replaceable wheel spindles | Wheel spindles can be replaced when damaged without replacing the entire axle. Simply remove two bolts to replace damaged spindle. |
| Double swivel hitch | Great for uneven terrain, reduces drawbar wear. |
| Bar-tite hitch | Ideal for extreme conditions. Clamps tight to drawbar eliminating drawbar wear. |
| Wheel options | Laminated tires: Eliminates flats. Airplane tires without foam filling: Give better cushion while transporting. Airplane tires with foam filling: Give better cushion while transporting and can’t go flat. |
| Deck rings (optional) | 1/2" x 3" full welded deck ring keeps blades from damaging the deck. |
| Shredder Blades (Optional) | Ideal for cutting residue into smaller pieces. Replaces blade and stump jumper configuration. |
| Baffles (Accessory) | Maintains shredded material in each section of the cutter for a consistent discharge from the rear of each deck. |
Specifications
