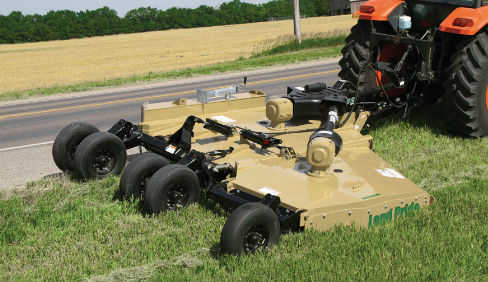

Land Pride RCM5610
RC5610 Offset Rotary Cutters RCM5610
Overview:
The RC5610 and RCM5610 Rotary Cutters provide excellent cutting performance on gently sloping or slightly contoured right of ways, roadsides, pastures, set-aside-acres, or for residue in row crop fields. The 10’ cutting width, 2" to 14" cutting height and ability to cut weeds and brush up to 4" in diameter make them we... + Read More
Features
| Features | Benefits |
| Surpassed rugged industry standards |
All Land Pride Cutters have been designed and tested to meet rigorous voluntary testing procedures according to ISO 4254-13. |
| Factory assembled | Saves customer set-up time and money. |
| 7 Year gearbox warranty* | Shows confidence in gearbox integrity. (Years 6 & 7, parts only.) |
| Rugged heavy built gearboxes | Capable of handling heavy cutting applications. |
| Gearbox Seal Protection | Gearbox bottom seal protection for longer bearing life. |
| 2 3/8" Output gearbox shaft | Large output shaft handles shock loads better. |
| 2 Piece shield on wing gearboxes | Driveline grease zerks are easier to access. |
| Self-leveling hitch | Reduces drawbar wear by keeping hitch level while going through ditches. |
| Low hitch weight on tractor tongue | Ideal for smaller HP tractors by reducing the amount of weight on the drawbar. |
| Narrow A-frame hitch | Allows for a tighter turning radius. |
| Adjustable park jack angle | Park jack can be adjusted to be perpendicular to the ground. |
| Adjustable driveline hanger | Serves as a support rest for the driveline when the cutter is unhooked from the tractor. Assist operator when attaching driveline to tractor PTO shaft. |
| Input driveline: Cat. 6 CV or Cat. 5 Conventional |
Holds up to shock loads and harsh mowing conditions. Constant velocity (CV) U-joint allows for 80 degree turns without doing damage to the driveline. |
| Cat. 5 intermediate & Cat. 4 wing drivelines with slip-clutches |
Driveline is sized right for the intended cutting capacity. Slip-clutch will slip under load instead of twisting the driveline. |
| Grease zerks on end caps of driveline cross journals | Intermediate and wing driveline cross journals are easier to grease. All drivelines have access holes for greasing U-joints and inner profiles. |
| High blade tip speed | Allows clean cutting of material and even distribution. |
| 6" Blade overlap | Eliminates skipping during turns. |
| High cutting capacity | Can cut brushy areas with saplings up to 4" with 56 Series and 4 1/2" with 66 Series. |
| 12" Deck height | Handles heavy cutting, which reduces balling-up of cut material under the deck. |
| 3/16" Stump jumper backed with a 1" thick mounting bar | Heavy round stump jumper. Can hold up to tough conditions. |
| Pre-cut chamber | Allows grass and vegetation to stand back up prior to cutting for a more complete cut. |
| Reinforced leading edge | Front of deck can withstand heavy brush and saplings. |
| Collapsible leveling rods | Prevents damage and failure to leveling rods. |
| 1" Leveling rods | Large diameter leveling rods provide superior supporting strength over rough terrain. |
| 10 Gauge smooth deck top | Reduces accumulation of debris and is easier and faster to clean. |
| 7 Gauge smooth deck bottom | Heavy deck design holds up to harsh conditions. No bottom obstructions. |
| Replaceable 1/4" side skirt | Reduces debris piercing possibilities. Can be replaced if damaged. |
| Beveled skid shoes on wing deck | Reduces gouging the ground when turning. |
| Hinged wing section | Allows cutter to follow terrain. Ideal for rough ground where hillsides, ditches, and hollows can cause uneven cutting. |
| 1" Solid hinge rods | Gives greater strength to the cutter from front to rear, and in the hinge area itself. |
| Wing transport lock | Holds transport wing in the folded-up position in case of hydraulic pressure loss. |
| Enclosed dual leveling rods | Cutter pulls equally on the rear axle while traveling over rough terrain. |
| 5-Bolt hubs | 5-Bolt hubs makes the wheel assembly more durable and longer lasting. |
| Drain holes in wheel rims | Allows water to drain from wheels mounted on folded-up wing. Helps prevent paint deterioration and rusting to the wheel rims. |
| Spring-cushioned trailing arms | Provides independent suspension, cushions loads on drawbar. |
| Replaceable wheel spindles | Wheel spindles can be replaced when damaged without replacing the entire axle. Simply remove one bolt to replace damaged spindle. |
| Bar-tite hitch | Ideal for extreme conditions. Clamps tight to drawbar eliminating drawbar wear. |
| Wheel options | Laminated tires: Eliminates flats.; Air-filled tires: Give better cushion while transporting. Foam-filled tires: Give better cushion while transporting and can’t go flat. |
| LP Performance hitch option | Great for uneven terrain, reduces drawbar wear. Hitch pivots freely up and down and pivots about the tractor drawbar. |
| Bar-tite hitch option | Ideal for extreme conditions. Clamps tight to drawbar eliminating drawbar wear. |
| Roadway light kit option | Allows operator to transport on public roads safer when head lights are turned on and/or when flasher lights are turned on. |
| Deck rings (optional) | Keeps blades from damaging the deck. |
Specifications
