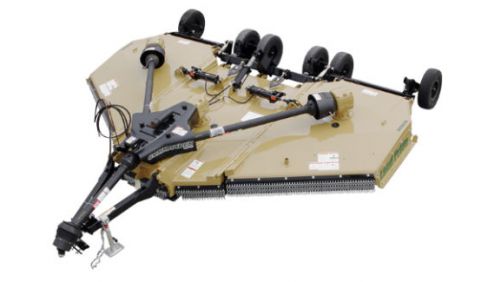

Land Pride RC5615
RC5615 Rotary Cutters RC5615
Overview:
The Land Pride RC5615 Rotary Cutter features a smooth top design, allowing debris and moisture to roll off or be easily swept or blown off. It's also smooth on bottom, which means less chance of dry caking material getting lodged in tight corners.
The RC5615 features independent spring-cushioned wheel arms for more ... + Read More
Features
| Features | Benefits |
| Surpassed rugged industry standards |
All Land Pride Cutters have been designed and tested and meet rigorous voluntary testing procedures according to ISO 4254-13.. |
| Factory assembled | Saves customer set-up time and money. |
| 7 Year gearbox warranty* | Shows confidence in gearbox integrity. (Years 6 & 7, parts only.) |
| Rugged heavy built gearboxes | Capable of handling heavy cutting applications. |
| Gearbox Seal Protection | Gearbox bottom seal protection for longer bearing life. |
| 2 3/8" Output gearbox shaft | Large output shaft handles shock loads better. |
| 2 Piece shield on wing gearboxes | Driveline grease zerks are easier to access. |
| Self-leveling hitches | Reduces drawbar wear by keeping hitch level while going through ditches. |
| Low hitch weight on tractor tongue | Ideal for smaller horsepower tractors by reducing the amount of weight on the drawbar. |
| Narrow A-frame hitch | Allows for a tighter turning radius. |
| Adjustable park jack angle | Park jack can be adjusted to be perpendicular to the ground. |
| Adjustable driveline hanger | Serves as a support rest for the driveline when the cutter is unhooked from the tractor. Assist operator when attaching driveline to tractor power take-off shaft. |
| Input driveline: Cat. 6 CV or Cat. 5 conventional |
Holds up to shock loads and harsh mowing conditions. Constant velocity (CV) U-joint allows for 80 degree turns without doing damage to the driveline. |
| Drivelines with slip-clutches: RC56 Series: Cat. 4 standard RC66 Series: Cat. 5 standard |
Driveline is sized right for the intended cutting capacity. Slip-clutches will slip under load to minimize twist damage to driveline profiles. |
| Grease zerks on end caps of driveline cross journals |
Intermediate and wing driveline cross journals are easier to grease. All drivelines have access holes for greasing the U-joints and inner profiles. |
| High blade tip speed | Allows clean cutting of material and even distribution. |
| 6" Blade overlap | Eliminates skipping during turns. |
| High cutting capacity | Can cut brushy areas with saplings up to 4" with 56 Series and 4 1/2" with 66 Series. |
| Pre-cut chamber | Allows grass and vegetation to stand back up prior to cutting for a more complete cut. |
| Reinforced leading edge | Front of deck can withstand heavy brush and saplings. |
| 12" Deck height | Handles heavy cutting, which reduces balling-up of cut material under the deck. |
| 10 Gauge smooth deck top | Reduces accumulation of debris and is easier and faster to clean. |
| 7 Gauge smooth deck bottom | Heavy deck design holds up to harsh conditions. No bottom obstructions. |
| Replaceable 1/4" side skirt | Reduces debris piercing possibilities. Can be replaced if damaged. |
| 3/16" Stump jumper backed with a 1" thick mounting bar |
Heavy round stump jumper with bottom gearbox seal protector. Can hold up to tough conditions. |
| Beveled skid shoes on wings | Reduces gouging the ground when turning. |
| LED Signal lights | LED lights are bright, long lasting, and resistant to vibration, unlike incandescent counterparts. |
| Hinged wing sections | Allows cutter to follow terrain. Ideal for rough ground where hillsides, ditches, and hollows can cause uneven cutting. |
| Greasable wing folding hinges | Provides for a long hinge life and allows wings to fold up and down with less stress. |
| 1" Solid hinge rods | Larger diameter hinge rod gives greater strength to the cutter from front to rear, and in the hinge area itself. |
| Wing transport lock pins | Holds transport wings in the folded-up position in case of hydraulic pressure loss. |
| Collapsible leveling rods | Prevents damage and failure to leveling rods. |
| Enclosed front to rear dual leveling rods |
Dual leveling rods enable the cutter to pull equally on the rear axle during travel over rough terrain. Many competitors only use one leveling rod. |
| 5-Bolt hubs | 5-Bolt hubs makes the wheel assembly more durable and longer lasting. |
| Drain holes in wheel rims | Allows water to drain from wheels mounted on folded-up wings. Helps prevent paint deterioration and rusting to the wheel rims. |
| Spring-cushioned trailing arms | Provides independent suspension, cushions loads on drawbar. |
| Replaceable wheel spindles | Wheel spindles can be replaced when damaged without replacing the entire axle. Simply remove one bolt to replace damaged spindle. |
| Wheel options | Laminated tires: Eliminates flats. Airplane tires without foam filling: Give better cushion while transporting. Airplane tires with foam filling: Give better cushion while transporting and can’t go flat. |
| LP Performance hitch option | Great for uneven terrain, reduces drawbar wear. Hitch pivots freely up and down and pivots about the tractor drawbar. |
| Bar-tite hitch option | Ideal for extreme conditions. Clamps tight to drawbar eliminating drawbar wear. |
| Roadway light kit option | Allows operator to transport on public roads safer when head lights are turned on and/or when flasher lights are turned on. |
| Deck rings (optional) | 1/2" x 3" full welded deck ring keeps blades from damaging the deck. |
