Land Pride RCBM6610
RCB6610 Series Rotary Cutters RCBM6610
Overview:

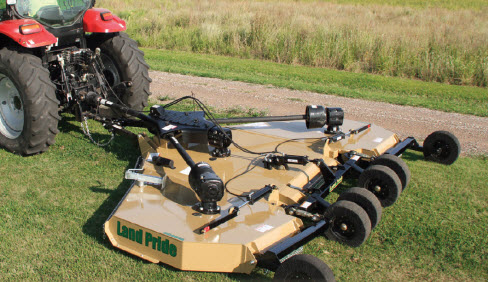

The RCB6610 & RCBM6610 Series Rotary Cutters are designed and built by Land Pride to provide excellent cutting performance on gently sloping or slightly contoured right of ways, roadsides, pastures, set-asideacres, or for residue in row crop fields. The 10’ cutting width, 2" to 14" cutting height and ability to cut wee... + Read More
Features
| Features | Benefits |
| Surpassed rugged industry standards |
All Land Pride Cutters have been designed and tested and meet rigorous voluntary testing procedures according to ISO 4254-13. |
| Factory assembled | Saves customer set-up time and money. |
| 7 Year gearbox warranty* | Shows confidence in gearbox integrity. (Years 6 & 7, parts only.) |
| Rugged heavy built gearboxes | Gearboxes are capable of handling heavy cutting applications. |
| Gearbox Seal Protection | Gearbox bottom seal protection for longer bearing life. |
| 2 3/8" Output gearbox shaft | Large output shaft handles shock loads better. |
| 2 Piece shield on wing gearboxes | Driveline grease zerks are easier to access. |
| Self-leveling hitches | Reduces drawbar wear by keeping hitch level while going through ditches. |
| Narrow A-frame hitch | Allows for a tighter turning radius. |
| Adjustable park jack angle | Park jack can be adjusted to be perpendicular to the ground. |
| Adjustable driveline hanger | Serves as a support rest for the driveline when the cutter is unhooked from the tractor. Assist operator when attaching driveline to tractor PTO shaft. |
| Input driveline: Cat. 6 CV or Cat. 5 Conventional |
Holds up to shock loads and harsh mowing conditions. Constant velocity (CV) U-joint allows for 80 degree turns without doing damage to the driveline. |
| Grease zerks on end caps of driveline cross journals | Intermediate and wing driveline cross journals are easier to grease. All drivelines have access holes for greasing the U-joints and inner profiles. |
| 4 Plate slip-clutch | Protects drivelines and gearboxes by slipping clutches rather than twisting the driveline when impacts are encountered. |
| High blade tip speed | Allows clean cutting of material and even distribution. See Specifications for actual FPM. |
| 6" Blade overlap | Eliminates skipping during turns. |
| High cutting capacity | Can cut brushy areas with saplings up to 4 1/2". |
| Pre-cut chamber | Allows grass and vegetation to stand back up prior to cutting for a more complete cut. |
| Reinforced leading edge | Front of deck can withstand heavy brush and saplings. |
| 12" Deck height | Handles heavy cutting, which reduces balling-up of cut material under the deck. |
| 10 gauge smooth deck top | Reduces accumulation of debris and is easier and faster to clean. |
| 7 Gauge smooth deck bottom | Heavy deck design holds up to harsh conditions. No bottom obstructions. |
| Replaceable 1/4" side skirt | Reduces debris piercing possibilities. Can be replaced if damaged. |
| 3/16" Stump jumper backed with a 1" thick mounting plate |
Heavy round stump jumper for protecting the gearbox seal and gearbox output shaft. Can hold up to tough conditions. |
| Spindle Nut Protected | Spindle nut and threads extending beyond the nut are guarded to protect against damage from hitting solid objects. |
| Beveled skid shoes on wings | Reduces gouging the ground when turning. |
| Hinged wing section | Allows cutter to follow terrain. Ideal for rough ground where hillsides, ditches, and hollows can cause uneven cutting. |
| Greasable wing folding hinge | Provides for a long hinge life and allows the wing to fold up and down with less stress. |
| 1" Solid hinge rods | Larger diameter hinge rod gives greater strength to the cutter and in the hinge area itself. |
| Wing transport lock pin | Holds transport wing in the folded-up position in case of hydraulic pressure loss. |
| Collapsible 1" Leveling rods | Prevents damage and failure to leveling rods. Large diameter leveling rods provide superior supporting strength over rough terrain. |
| Enclosed dual leveling rods | Dual leveling rods enable the cutter to pull equally on the rear axle during travel over rough terrain. Many competitors only use one leveling rod. |
| 5-Bolt hubs | 5-Bolt hubs makes the wheel assembly more durable and longer lasting. |
| Drain holes in wheel rims | Allows water to drain from wheels mounted on folded-up wing. Helps prevent paint deterioration and rusting to the wheel rims. |
| Spring-cushioned trailing arms | Provides independent suspension, cushions loads on drawbar. |
| Replaceable wheel spindles | Wheel spindles can be replaced when damaged without replacing the entire axle. Simply remove one bolt to replace damaged spindle. |
| Slow moving vehicle sign (SMV) | Great for transporting on roadways and mowing along side roads. |
| Rear axle pull rings | Aids in getting unit out of soft ground conditions. |
| Rephasing wing cylinder | Allows the cutter to be leveled using wing cylinder verse mechanical turnbuckles. |
| Dual-acting wing cylinder | Allows wing to be folded inward beyond 90o for a narrow 7'-5 1/4" transport width. |
| Wheel options | Laminated tires: Eliminates flats. Airplane tires without foam filling: Give better cushion while transporting. Airplane tires with foam filling: Give better cushion while transporting & can’t go flat. |
| LP Performance hitch option | Great for uneven terrain, reduces drawbar wear. Hitch pivots freely up and down and pivots about the tractor drawbar. |
| Bar-tite hitch option | Ideal for extreme conditions. Clamps tight to drawbar eliminating drawbar wear |
| Roadway light kit option | Allows operator to transport on public roads safer when head lights are turned on and/or when flasher lights are turned on. |
| Walking tandem axle option | Allows for a smoother pull in undulating terrain. |
| Deck rings (optional) | 1/2" x 3" full welded deck ring keeps blades from damaging the decks. |
| Mechanical Winch (optional) | Aids in folding the cutter in the event of hydraulic failure. |
| Reverse Gearbox Rotation on Center & Wing Deck (optional) |
Throws debris away from the road when cutting along side a road. |
Specifications
