Land Pride RCFM3010
RCF3010 Series Rotary Cutters RCFM3010
Overview:

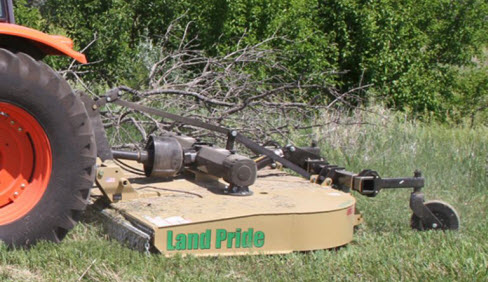

The all new RCF3010 Dual-Spindle Rotary Cutter from Land Pride is the perfect medium-duty cutter for pastures and roadside applications. Available in 3-point, semi-mount or pull-type, the RCF30 features a 2.5" cutting capacity and ¼" side skirts. Plus, every RCF3010 comes with the rugged dependability that Land Pride Rotary Cutters are known for.
Features
| FEATURES | BENEFITS |
| Surpassed rugged industry standards | All Land Pride Cutters have been designed and tested and meet rigorous voluntary testing procedures. |
| 540 or 1000 RPM | Fits wider variety of tractors. |
| High Gearbox HP rating | Gearboxes are built rugged. See Specifications for actual Gearbox HP ratings. |
| 5 Yr. limited gearbox warranty | Shows our confidence in the gearbox integrity. |
| 3 Gearboxes | Allows equal torque to be spread to left and right gearbox. |
| Splined rubber flex-couplers between the center and outboard gearboxes | Protects the driveline and gearboxes from hard objects in the blade path. |
| Pull-type unit Constant velocity driveline U-Joint option (RCF3010 only) | Reduces chatter and extends life of U-joint during turns. |
| Slip-clutch protection on main driveline | Slip-clutch is more convenient than shear-bolt, protects gearbox against sudden impact. |
| 8'- Cat. 1 & 2 or 10'- Cat. 2 & 3 3-Point & Semi-mount Hitches or Pull-type Hitch | Fits a wide range of tractors. Semi-mount and Pull-type fit older tractors without a top link and smaller tractors without enough lift capacity. |
| 10 Gauge deck, fully welded | Fully welded deck adds rigidity. |
| 1/4" Thick sidewalls | Protects sidewalls from thrown objects. |
| Round back design | Allows for cleaner and efficient discharge of material, helps eliminate damage to rear corners by not sticking out. |
| Pull-type w/dual leveling rods | Dual leveling rods eliminate deck twisting when going over uneven terrain. |
| Chain or rubber guard option | Reduces flying debris. |
| Full length skids with replaceable shoes | Adds reinforcement to side panels. Replaceable shoes allow for change before wearing through to weld-on piece. |
| Splined blade hub | Splined blade hub offers tight non-slipping attachment to output shaft. |
| 3/16" Round stump jumper | Standard stump jumper aids in sliding over obstructions, which helps protect gearbox output shaft. |
| 1" x 4" Blade bar | Heavy-duty blade bar adds support to stump jumper as well as gearbox output shaft. |
| 1/2" x 4" Heat-treated blades | Heat-treated blades last longer than non-heat-treated blades. |
| 2 1/2" Diameter cutting capacity | Aids in cutting brush. |
| High blade tip speed | Means cleaner cutting. See Specifications for actual blade tip speeds. |
| Laminated tires | Laminated tires can handle almost any condition and don’t go flat. |
| Quick-Hitch adaptable | 3-point and semi-mount are Quick-hitch adaptable. |
Specifications
