Land Pride RCR1548

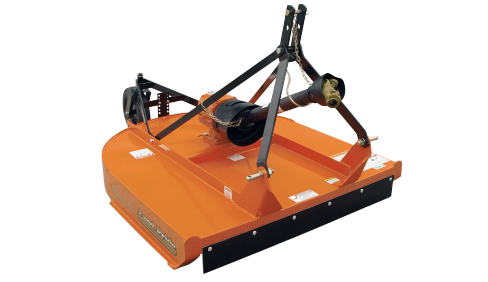

RCR1548 Series Rotary Cutters RCR1548
Overview:
Land Pride’s RCR15 Series Rotary Cutters are ideal for clearing grass, weeds and light brush. These cutters offer fast, clean, dependable mowing and have been extensively tested to ensure operating safety. High blade tip speeds assure a clean cut in a variety of field conditions. The standard stump jumper slides over s... + Read More
Features
| FEATURES | BENEFITS |
| Surpassed rugged industry standards | All Land Pride Cutters have been designed and tested and meet rigorous voluntary testing procedures specified by ANSI. |
| 5 Year gearbox warranty | Shows our confidence in the gearbox integrity. |
| Cat. 3 driveline with shear- bolt | Shear bolt offers maximum driveline protection. |
| Cat. 3 driveline with 2-plate slip-clutch | Slip-clutch driveline offers convenience for continual work. |
| Floating top link | Provides for easy hook-up. Permits deck to follow the terrain for an even cut. Two hole position to allow greater lift leverage for smaller tractors. |
| Fully welded deck | Robotic welded. Adds additional strength. |
| Round back design | Helps discharge grass better than enclosed or partially enclosed cutters. |
| Cutting Height | 1" - 9" cutting height for wide range of cutting conditions. |
| Full length skid shoes | Provides sidewall reinforcement and full protection to bottom of sidewall. |
| 1/2” x 3” Heat-treated free swinging blades | Free swinging protects from obstructions. Heat-treated offers longer life. |
| Splined blade bar hub | Allows for tight positive fit of stump jumper and blade bar to gearbox output shaft. |
| 10 Gauge stump jumper | Allows cutter to slide over obstructions protecting the gearbox output shaft. |
| High blade tip speed | Ensures clean cut. 42" = 11,459 fpm 48" = 13,090 fpm |
| Laminated tailwheel | Laminated material is long lasting in rough conditions. |
| Solid rubber tailwheel | Can’t go flat. |
| Heavy-duty spindle on tailwheel | Tailwheels take a beating, 1 1/4” spindle gives the strength to protect tailwheel assembly. |
| Guarding | Protect against flying debris. Customer can choose to include rubber on the front and rear. |
| Driveline holder | Keeps driveline up out of dirt. Easier hook up of driveline. |
Specifications
| Model | RDR1548 |
| Implement weight (with front guard) |
424 lbs. |
| Hitch | Category 1 & Category 1 limited, Quick Hitch ready |
| Cutting Width | 47 1/2" |
| Overall Width | 53 1/2" |
| Overall length Iincluding tailwheel) |
91 3/4" |
| Deck height (Bottom of deck to bottom of skid shoe) |
7 1/4" |
| Cutting height | 1 3/4" - 11 1/2" |
| Cutting capacity | 2" (Grass, weeds & light brush) |
| Recommended tractor hp | 20-50 HP |
| Power take-off speed | 540 RPM |
| Gearbox hp rating | 50 HP |
| Gearbox with speed up beveled gears | 540 input rpm gearbox 1:1.93 Cast iron housing |
| Gearbox oil capacity & lubrication | 4.5 Pints of gear lube 80-90w EP |
| Deck construction | One piece reinforced deck |
| Deck material thickness | 12 Gauge |
| Skids shoes | 1/4" X 2" Weld-on |
| Stump jumper | Round pan 10 ga. x 24" |
| Blades (2) | 1/2" x 3" Heat treated alloy steel Free-swinging blades |
| Blade bolts | Keyed with harden flat washer and lock nut |
| Blade tip speed | 13,090 fpm |
| Driveline | ASAE Category 3 |
| Driveline protection | Standard 1/2" center shearbolt protection Optional - Center bolt 2 plate slip clutch |
| Tailwheel | 4" x 16" Solid rubber tire |
| Safety guards (Optional) | Rubber (front and rear) |
