Land Pride RCR1872

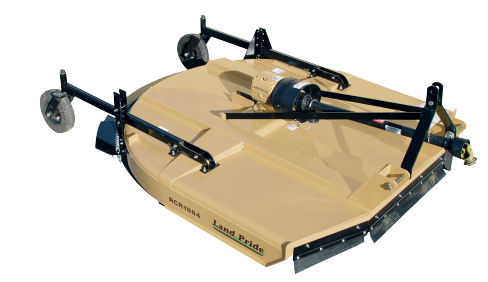

RCR18 Series Rotary Cutters RCR1872
Overview:
The RCR18 Series Rotary Cutters are available in 60" & 72" widths for light-duty maintenance around the farm, on gently slopes, or slightly contoured right-of-ways. A fully welded deck adds additional strength while the floating 3-point permits the deck to hug the terrain for a quality cut. The cutters have a category ... + Read More
Features
| FEATURES | BENEFITS |
| Surpassed rugged industry standards | All Land Pride Cutters have been designed and tested and meet rigorous voluntary testing procedures specified by ANSI. |
| 5 Year gearbox warranty | Shows our confidence in the gearbox integrity. |
| Cat. 3 driveline with shear-bolt | Shear-bolt offers maximum driveline protection. |
| Cat. 3 driveline with 2-plate slip-clutch | Slip-clutch driveline offers convenience for continual work. |
| Dual position clevis type 3-point floating top link | Permits deck to follow the terrain for an even cut. Additional set of holes for tractors with shorter top links. |
| Lower clevis type 3-point hitch | Allows for ease of hook-up to tractor. Also adds additional strength allowing for an even pull from the tractor’s lower arms, vs. pulling on a single pin design. |
| Heavy 10 gauge deck construction | Can withstand more abuse than lighter gauge decks. |
| Box tubing deck support | Makes for a stronger rigid deck |
| Fully welded deck | Robotic welded. Adds additional strength. |
| Extended cutter front | For increased material flow and added protection. |
| Round back design | Helps discharge grass better than enclosed or partially enclosed cutters. |
| 7 1/4" Deck height on RCR1860 8 7/8" Deck height on RCR1872 |
Allows cutter to handle heavy cutting conditions. |
| 1 1/2" to 13" RCR1860 Cutting height 1 1/2" to 11 1/2" RCR1872 Cutting height |
Provides for a wide range of cutting conditions. |
| Full length skid shoes | Provides sidewall reinforcement and full protection to bottom of sidewall. |
| 1/2” x 3” Heat-treated free swinging blades | Free swinging protects from obstructions. Heat-treated offers longer life. |
| Splined blade bar hub | Allows for tight positive fit of stump jumper and blade bar to gearbox output shaft. |
| 10 Gauge stump jumper | Standard round stump jumper slides over stumps, rocks and debris. |
| High blade tip speed RCR1860 = 16,360 FPM RCR1872 = 14,853 FPM |
Ensures clean cut. |
| 15”Laminated tailwheel | Laminated material is long lasting in rough conditions. |
| 4” x 16” Solid rubber tailwheel | Can’t go flat. |
| Heavy-duty spindle on tailwheel | Tailwheels take a beating, 1 1/4” spindle gives the strength to protect tailwheel assembly. |
| Guarding | Protect against flying debris. Customer must choose to include chain or rubber on the front and rear. Rear Metal Band standard. |
| Driveline Holder | Keeps driveline up out of dirt. Easier hook up of driveline. |
Specifications
| Model | RCR1872 |
| Machine Weight | 737 lbs. With laminated tailwheel, slip clutch driveline, front rubber guards and rear metal band. |
| Hitch | Category l with floating clevis top link, Quick-Hitch ready |
| Cutting Width | 72" |
| Overall Width | 77" |
| Overall Length | 110" |
| Deck Height (Bottom of Deck to Bottom of Skid Shoe) |
9" |
| Cutting Height | 1 1/2" to 11 1/2" |
| Cutting Capacity | 2" Diameter |
| Recommended Tractor PTO HP | 20-65 HP |
| PTO Speed | 540 RPM |
| Gearbox | 1:1.46 Speed-up beveled gears Cast iron housing |
| Gearbox Oil Capacity & Lubricant | 4.5 Pints of EP 80-90W oil |
| Deck Material Thickness | 10 Ga. (.134") |
| Side Skirt Material Thickness | 10 Ga. (.134") |
| Deck Construction | All welded deck |
| Skid Construction | Full length welded on |
| Stump Jumper | Round pan 10 ga. x 24" with blade holder bar |
| Blades (2) | 1/2" x 3" Heat treated alloy steel Free-swinging high lift - low friction |
| Blade Bolts | Keyed with harden flat washers & lock nuts. |
| Blade Tip Speed | 14,955 FPM |
| Driveline | ASAE Category 3 shearbolt or 2-plate slip-clutch |
| Driveline Protection | Optional - Center shearbolt protection Optional - Center bolt 2 plate slip clutch |
| Tailwheel Mount Assembly | Welded A-arm and caster fork with 360 degree swivel |
| Tailwheel | 4" x 8" x 15" Laminated tire with cast iron hub or 4" x 16" molded rubber tire |
| Front Guard | Optional: Rubber Belting Accessory: Chain Guard |
| Rear Guard | Standard: Metal Band Optional: Rubber Belting Accessory: Chain Guard |
