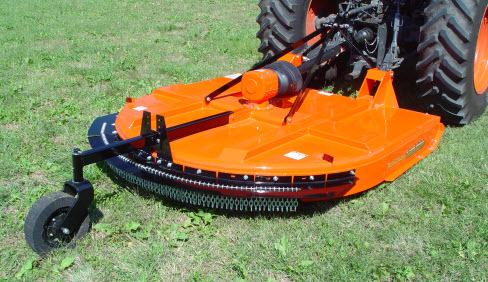

Land Pride RCR2684
RCR2684 Rotary Cutters RCR2684
Overview:
The medium-duty RCR2684 Rotary Cutter from Land Pride is ideal for cutting on gently sloping or slightly contoured rights-of-way, pastures, set aside acres, and row crop fields. Their 84" cutting width makes them compatible with the more maneuverable and lower 60 to 130 horsepower tractors with 540 rpm PTO and category... + Read More
Features
| FEATURES | BENEFITS |
| Surpassed rugged industry standards | All Land Pride Cutters have been designed and tested and meet rigorous voluntary testing procedures specified by ANSI. |
| 5 Year gearbox warranty | A rugged heavy built gearbox capable of handling heavy cutting applications. Shows Land Pride's confidence in gearbox integrity. |
| 130 HP gearbox | A rugged heavy built gearbox capable of handling heavy cutting applications. |
| Cat. 4 driveline with 4 plate slip-clutch | Excellent gearbox protection with the slip-clutch slipping when encountering obstruction in the blade path. Standard slip-clutch offers convenience over shear-bolts. |
| Cat. II or III Hitch Quick Hitch Capability | Permits deck to follow the terrain for an even cut. Quick Hitch provides for fast hook-up. |
| Lower clevis type 3-point hitch | Allows for ease of hook-up to tractor. Also adds additional strength allowing for an even pull from the tractor's lower arms, vs. pulling on a single pin design. |
| 84" Cutting width | Wide cutting width, Reduces cutting time in the field. |
| Heavy 10 gauge deck construction | Can withstand more abuse than lighter gauge decks. |
| 1/4" Side panels for overall reinforcement | Also protects sides from debris being thrown against them from the blades. |
| Fully welded deck | Robotically welded. Adds additional strength and deck integrity. |
| Round back design | Allows for more efficient handling and dispersing of material. |
| 10 1/8" Deck Height | Allows cutter to handle heavy cutting conditions. |
| 2" to 12" Cutting height | Provides for a wide range of cutting conditions. |
| High cutting capacity | Can cut brushy areas with saplings up to 3". |
| Full length skids with replaceable shoes | Full length skids protect side plate structure, replaceable shoes for convenience. |
| 1/2" x 4" Heat-treated free swinging blades | Free swinging protects from obstructions. Heat-treated offers longer life. |
| Splined blade bar | Allows for tight positive fit of stump jumper and blade bar to gearbox output shaft. |
| 3/16" Oval stump jumper | Standard stump jumper aids in sliding over obstructions, which helps protect gearbox output shaft. |
| High blade tip speed | Ensures clean cut. (14,369 fpm) |
| Available with single or dual tailwheels | Dual tailwheels offer greater stability in uneven terrain. |
| 15" Rugged Laminated tailwheel | Laminated material is long lasting in rough conditions. Can't go flat. |
| Chain or rubber shield option | Located on front and rear. Reduces flying debris. |
