Land Pride RGR1242

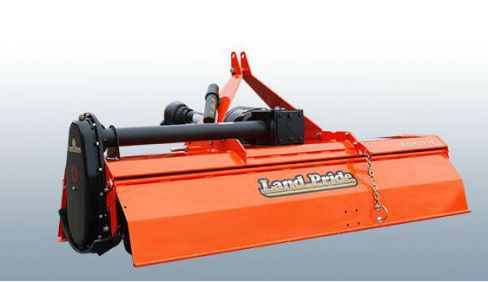

RGA12 & RGR12 Series Gear Drive Rotary Tillers RGR1242
Overview:
Land Pride is expanding our popular line of 3-point Rotary Tillers with the addition of two gear drive models – the RGA12 forward rotation and RGR12 reverse rotation in 6 widths each from 42" to 82". These American-made tillers feature Cat. 1 hitch, plate steel A-frame and 540 RPM gearbox. Both models include a 17" dia... + Read More
Features
| Features | Benefits |
| American made | American made means better quality & parts availability. Most tillers are imported. |
| Tractor hp range 42" & 50" 58" & 66" 74" 82" |
18-60 hp 23-60 hp 30-60 hp 35-60 hp |
| Reverse tilling action (RGR only) | Reverse action ‘sucks’ tiller into ground, does not walk on top of hard ground like forward rotation tillers can. |
| 3 Year limited gearbox warranty | 3 Years on housings, seals, bearings. Shows our confidence in the product. |
| 42", 50", 58", 66", 74", & 82" Working widths |
A wide range of widths are available to meet specific customer needs. |
| 7" Tilling depth | For deep soil penetration. |
| Formed plate steel upper hitch | Plate steel is stronger than flat bar type hitch. |
| Fits Land Pride Quick Hitch | Allows for quick and easy one person hook-up. |
| Park stand | Allows for easy hook-up and storage. |
| Adjustable skid shoes | Control depth with seven adjustments |
| Formed and reinforced rear deflector |
Keeps dirt in and leaves a level finish. Forming gives deflector additional strength. Adjustable deflector allows for various finish results. |
| Front deflector (RGR only) | Front deflector is flexible to take the beating from rocks or debris. |
| Bolt in rotor | Rotor removes and replaces easier for servicing. |
| 17" Rotor swing diameter | For deep tilling and turns the soil over faster. |
| Six “C” shaped, heat-treated tines per flange |
“C” Shaped tines require less hp to move through the ground. Six tines per flange make for a better seedbed in less time than four tines. |
| Double lip seal on rotor bearing | Double lip seal helps keep the dirt out and the grease in. |
| Fully shielded slip-clutch driveline | Protects gearbox and rotor shaft upon hitting obstructions. Slip-clutch saves having to replace shear-pins. |
| Gear drive enclosed in oil bath |
Gear drive requires less maintenance than roller chain drive. Oil bath keeps wear to a minimum. |
| Stamped gear case cover | Stamped forming gives the chain cover strength. |
| Optional BX driveline | This driveline will fit B and BX Kubota tractors without cutting it to fit. Not quick hitch adaptable for B & BX Kubota tractors. |
Specifications
| Model Number | RGR1242 |
| Recommended tractor PTO hp | 18 to 60 hp |
| Weight | 462 lbs. |
| Working depth | 7 in. |
| Working width | 42" |
| Overall width | 47 1/2" |
| 3-Point hitch type | Category I, 3-point plate steel A-frame, Fits Land Pride Quick Hitch |
| Driveline | Category 4 with Slip Clutch |
| Optional BX driveline | Category 4 with Slip Clutch, Not recommended with Quick Hitch |
| Number of flanges on rotor | 5 |
| Number of tines per flange | 6 |
| Tine construction | Alloy steel heat-treated “C” shaped blades |
| Rotor rotation | Reverse rotation |
| Rotor swing diameter | 17" |
| Rotor shaft speed | 211 rpm at 540 rpm PTO |
| Rotor bearing mount | Machined cast iron with ball bearings |
| Skid shoes | Adjustable |
| Park stand | Adjustable |
| Rear deflector | Adjustable |
| Front deflector | Rubber |
| Gearbox construction | 60 hp input at 540rpm 1.92:1 ratio, Cast iron housing with ASAE 1 3/8" - 6 spline shaft, tapered roller bearings, bevel gears, drain plug, level plug & fill plug |
| Gearbox lubrication | 2 Pints of SAE 80-90W EP oil |
| Drive end construction | Spur gears enclosed in an oil bath with oil level plug or sight glass and oil fill/breather plug |
| Gear case lubrication | 6 Pints of SAE 80-90W EP oil |
| Spur gears | Case hardened teeth |
