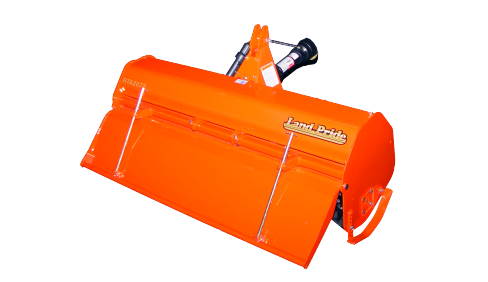

Land Pride RTA2064
RTA20 Series Rotary Tillers RTA2064
Overview:
Available in two popular widths, the Land Pride RTA20 Series Rotary Tiller effortlessly turns up hard-packed ground, leaving a perfect seedbed for gardens or grass. The RTA20 Series Rotary Tiller offers a forward-rotating tilling action that can work in many types of ground conditions. Suited for up to 50 HP tractors, ... + Read More
Features
| FEATURES | BENEFITS |
| American made | Many tillers are imported. American made means better parts availability. |
| 20 Series | Fills the gap between our 15 and 25 Series Tillers, both in size and price. |
| RTR Reverse rotation model or RTA forward rotation model | Land Pride has the market on reverse rotation. This brings in a quality tiller at a more affordable price for landscapers. We offer forward rotation for contractors who want it. |
| Reverse tilling action | Reverse action 'sucks' tiller into ground, does not walk on top of hard ground like forward rotation tillers can. |
| Tractor HP | 23 - 50 HP. |
| Gearbox Warranty | 5 Years Parts and Labor. Shows our confidence in the product. |
| Working Widths | 64" & 72" Meets a wide range of customer needs. |
| Integral Hitch | Upper hitch, gearbox and gearbox mount brought together to form a stronger overall hitch frame. |
| Clevis Style Lower Hitch | Allows easier hook-up of lower 3-point arms. |
| Hitch sideshift capability | Sideshifts by loosening 6 U-bolts and sliding hitch points and gearbox over. Allows covering right tire track. |
| Cat. 1 Hitch fits Land Pride Quick-Hitch | Allows for quick and easy one-person hook-up. Offset is not comparable with Quick-Hitch. |
| Adjustable Parking Stand | Allows for easy hook-up and storage |
| Adjustable skid shoes | Control depth from various settings. |
| Material separator behind tilling action (RTR only) | 3/8" Rods sift the material letting bigger items fall first. Sifted soil falls last burying the bigger items. Attachment is one all welded piece for easy assembly. |
| Formed rear deflector with springs | Formed steel gives the rear deflector additional strength. Springs allow deflector to bounce as it hits obstructions. |
| Six tines standard on RTR20 Four tines standard on RTA20 with six being optional | Six tines cut through the ground smoother. |
| "C" Tines | C Tines take less horsepower to move through the ground. |
| 17" Rotor swing diameter | For deep tilling action. |
| Double lip seal on rotor bearing | Double lip seal keeps the dirt out and the grease in. |
| Cat. 3 heavy-duty fully shielded shear pin or slip-clutch driveline | Protects gearbox and rotor shaft upon hitting obstructions. Slip-clutch saves having to replace shear-pins. |
| #80 Drive chain enclosed in oil bath | Heavy-duty drive chain reduces stretching. Oil keeps constant lubrication and holds wear o a minimum. |
| Easy to adjust chain tightener | Cast iron chain tightener is a simple bolt adjustment to keep constant tension on the chain. |
| Stamped chain cover | Stamped forming adds additional strength. |
| Formed Deck | Handles material more efficiently, sheds water. |
Specifications
| Model | RTA2064 |
| Recommended Tractor PTO HP | 23-50 Horsepower (50 HP maximum) |
| Weight | 689 lbs. |
| Tilling Width | 64" |
| Overall Width | 70 13/16" |
| 3-Point Hitch Type | Category I, Adjustable Lower Hitch Clevis with Plated Pins Fits land Pride Quick Hitch |
| Sideshift Capabilities | 14" Note: Limited sideshift capabilities with Land Pride Quick Hitch |
| Number of Flanges | 8 |
| Number of Tines per Flange | 6 |
| Tine Construction | Alloy steel heat treated “C” shaped blades |
| Skid Shoes | Adjustable |
| Storage Stands | Adjustable |
| Rear Deflector | Adjustable profile stamped rear deflector |
| Driveline | ASAE Category III Heavy Duty Off-Center Shear bolt - standard Slip Clutch - optional |
| Gearbox | 75 hp Input at 540 rpm 1.46:1 Ratio Cast Iron Housing, Straight Bevel Gears |
| Gearbox Lubrication & Oil Capacity | 2.2 Pints of SAE80-90W EP oil |
| Drive Chain | #80 Roller chain - Fully enclosed in oil bath with drain & fill plugs |
| Drive Chain Lubrication | Shell Gadus S2 V2200 00 flowable grease or equivalent Land Pride Part #821-045C (32 oz. bottle) |
| Sprockets | Splined Bores |
| Rotor Swing Diameter | 17" |
| Rotor Shaft Speed | 220 rpm at 540 rpm power take-off speed |
