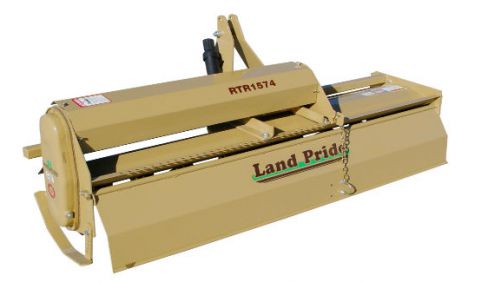

Land Pride RTR1574
RTR15 Series Rotary Tillers RTR1574
Overview:
Land Pride's RTR15 Reverse-Till Rotary Tillers prepare soil seedbeds for gardening or lawns. The RTR15 has offset capabilities to get close to fences or buildings, a formed and reinforced rear deflector to leave a perfect finish, and a #80 drive chain to stand up to the most demanding applications. These Land Pride Til... + Read More
Features
| FEATURES | BENEFITS |
| American made | Many tillers are imported. American made means better parts availability. |
| Reverse tilling action | Reverse action 'sucks' tiller into ground, does not walk on top of hard ground like forward rotation tillers can. |
| Tractor HP Range | 17 - 50 HP; Dependent upon width and Series of tiller. |
| Gearbox Warranty | 5 Years on housings, seals, bearings. Shows our confidence in the product. |
| Working widths | 50", 58", 66" & 74" To meet specific customers needs. |
| 6 1/2" Digging depth | For deep soil penetration. |
| Plate steel upper hitch | Plate steel is stronger than flat bar type hitch. |
| Clevis lower hitch | Provides additional strength and easy one person hook-up. |
| Hitch sideshift capabilities | Sideshift tiller to cover right tire track. Gearbox slides with tiller. |
| Sideshift dimensions50" Width 58" Width 66" Width 74" Width |
25" - 25" Std.12" - 38" Max. Right31" - 19" Max. Left 29" - 29" Std.12" - 46" Max. Right35" - 23" Max. Left 33" - 33" Std.12" - 54" Max. Right39" - 27" Max. Left 37" - 37" Std.16" - 58" Max. Right43" - 31" Max. Left |
| Fits Land Pride Quick-Hitch | Allows for quick & easy one person hook-up. Offset cannot be used with Quick-Hitch. |
| Adjustable Parking stand | Allows for easy hook-up and storage. |
| Adjustable skid shoes | Control depth with various settings. |
| Formed and reinforced rear deflector | Forming gives deflector additional strength. Adjustable deflector allows for various finish results. |
| Front deflector | Front deflector is flexible to take the beating from rocks or debris. |
| 4 'C' Shaped heat-treated tines per flange | 'C' Shaped tines require less HP to move through the ground. |
| RTR1550 & RTR1558 1 3/4" Solid steel rotor shaft RTR1566 & RTR1574 2" Solid steel rotor shaft | Solid steel shaft for strength. |
| 15" Rotor swing diameter | For deep tilling and turning the soil over faster. |
| Double lip seal on rotor bearing | Double lip seal helps keep the dirt out and the grease in. |
| Cat. 3 heavy-duty fully shielded shear pin or slip-clutch driveline | Protects gearbox and rotor shaft upon hitting obstructions. Slip-clutch saves having to replace shear-pins. |
| #80 Drive chain enclosed in oil bath | Heavy drive chain stretches less, and oil bath keeps wear to a minimum. |
| Stamped chain cover | Stamped forming gives the chain cover strength. |
Specifications
| Model | RTR1574 |
| Recommended Tractor PTO HP | 25-50 HP |
| Weight | 557 lbs. |
| Tilling Width | 74" |
| Overall Width | 80 1/4" |
| 3-Point Hitch Type | Category l, Adjustable Lower Hitch Clevis with Plated Pins Fits Land Pride Quick Hitch |
| Sideshift Capabilities | Yes, (Note: Sideshift capability is limited to adjustment of lower left clevis hitch) |
| Sideshift DimensionsCentered Shifted Right Shifted Left |
37" - 37" 16" - 58" 43" - 31" |
| Number of Flanges | 9 |
| Number of Tines per Flange | 4 |
| Tine Construction | Alloy steel heat treated “C” shaped blades |
| Skid Shoes | Adjustable |
| Storage Stands | Adjustable |
| Rear Deflector | Adjustable profile stamped rear deflector |
| Front Deflector | Rubber |
| Driveline | Category IIl Heavy Duty Off-Center Shear bolt - standard Slip Clutch - optional |
| Gearbox | 50 HP input at 540 rpm 1.92:1 ratio Cast iron housing, straight bevel gears |
| Gearbox Lubrication & Oil Capacity | 2 Pints of SAE 80-90W EP oil |
| Drive Chain | #80 Roller chain - Fully enclosed in oil bath with drain & fill plugs |
| Drive Chain Lubrication | Shell Gadus S2 V2200 00 flowable grease or equivalent Land Pride Part #821-045C (32 oz. bottle) |
| Sprockets | Case hardened teeth, splined bores |
| Rotor Swing Diameter | 15" |
| Rotor Shaft Speed | 211 rpm at 540 rpm PTO |
