Land Pride NTS2511

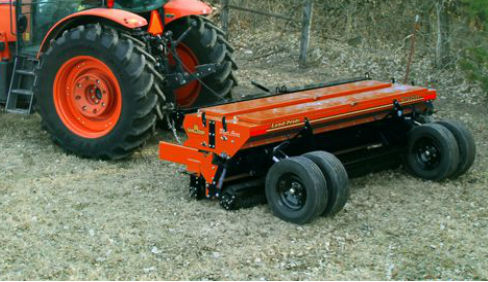

NTS25 No-Till Seeder NTS2511
Overview:
The new NTS25 No-Till Seeder, available in 7-, 9-, and 11-foot widths, makes quick work of your seeding tasks in renovating pastures, reclaiming rights-of-way, and planting food plots.
Our NTS25 Series Seeder comes with a variety of features built in and ease of use in mind. The unit is ground-driven by spikes incor... + Read More
Features
| Features | Benefits |
| Cat. I & II 3-point hitch option, QH adaptable | Fits a wide variety of tractors. Also fits Land Pride Quick Hitch for easy one person hook-up to tractor. Cat. I works with NTS2507 without Native Seedbox only. |
| Pull-hitch option | Allows for easier hook-up to tractor and is adaptable to smaller tractors. Rear tires help support seeder weight. |
| 7 ft., 9 ft., & 11 ft. widths | Provides high productivity over wide areas on flat or gently sloping terrain. |
| Machine weight | Heavier unit weight provides for better spike penetration and seed-to-soil contact. |
| Lift hooks | Lift hooks mounted on end of each seedbox for lifting and supporting individual seedboxes. Lift hooks on end of grass seedbox can be used with spreader bar for easy loading and unloading of the machine. |
| Large seedbox capacity | Keeps filling to a minimum and increases productivity. |
| Water-tight seedbox | Keeps moisture and rodents out of the seedbox. |
| Easy seedbox clean-out | Simply moving the flute lever to the proper position allows for easy clean-out and removal of all of the seeds in the seedbox. |
| Heavy duty seedbox lids with stay open support | Precision fit to keep water and rodents out and HD construction with integral prop support keeps lid from slamming shut in windy conditions. |
| Seed splash guards | Prevents seed from being spilled out between the lid and seedbox during hopper filling. |
| Wind Guarded Seed Drops | Protects seed from blowing away and ensures uniform seed distribution across the full width of the seeder. |
| Grass seed cups | Proven fluted seed cups for highly accurate seed delivery. |
| Grass seed agitator | Prevents bridging and keeps seed flowing evenly to grass seed cups. |
| Native seed agitator | Aggressive paddle style agitator to keep fluffy native grass from bridging. |
| Powdered metal in fluted sprockets | Helps dissipate any heat buildup from fluted area and plastic seed cup housing. |
| Seed rate charts on underside of seedbox lids | Conveniently positioned as large durable decal under the seedbox lids for handy calibration reference. |
| Easy seed rate adjustment on grass and native seedbox | Proper seed rate adjustment lever positioning is conveniently indicated on the seed rates chart for ease of setting and adjustment with a high level of confidence. |
| #40 Roller Chain Drive | Provides for smooth and quiet running with a high degree of reliability. Adjustable idlers and slotted take-ups help keep the drive chains allow for chain take-up. |
| High/low speed change sprocket for grass seedbox | A simple and easy repositioning of seed drive sprockets allows for an expanded range of grass seed drive settings. |
| 4-Speed transmission for Native seedbox | Easy and fast speed change, saves time from removing chains. |
| Spring loaded lock in/out pins on seedbox drive sprockets | Spring loaded lock in/out pins make it easy to lock each seedbox out that is not in use. Just pull out on lock in/out pin and turn it a quarter of a turn to disengage individual seedbox drive. Turn lock in/out pin another quarter of a turn to engage individual seedbox drive. |
| All Seeds Drive Sprocket with Patent Pending Lockout Clutch | Lockout clutch protects all seed cups from damage caused by turning backwards and while backing up with rear roller on the ground. Its spring loaded lock in/out pin makes it easy for the operator to engage and disengage power to all seedbox drive sprockets without engaging / disengaging individual seedbox drive sprockets. |
| Crab Action Spiked Front Rollers | Two 8" diameter front rollers can easily be angled from 0-18 degrees providing for more or less aggressive dethatching action or soil cultivation and seedbed preparation. |
| Mounted rear packer roller | Full length rear rollers come with cast steel and notched packer type rollers for maximum down pressure and seed to soil contact. |
| Ground driven metering | The rear roller serves as the primary seed meter drive providing a very high degree of accuracy, low maintenance costs, and long component life. |
| Mud scrapers | Reduces build-up of mud and debris on rollers when working in wet, sticky, or trashy soil. |
| Acre Meter Option | Allows operator to see how many acres have been seeded. |
Specifications
| Model No, | NTS2511 |
| Overall width | 138 3/4" |
| Seeding width (broadcast) | 129" |
| Weight w/o & with native seedbox 3-Point Pull type |
W/o native 2,650# 3,320# With native 3,146# 3,800# |
| Main frame construction | 3" x 4" Tube |
| 3-Point hitch option |
Category II Formed A-frame plates; Fits Land Pride Quick Hitch |
| Pull package option | Includes tongue, park jack, hydraulic lift cylinders, hydraulic hoses, and fittings. |
| Pull package hydraulic lift cylinders | Master/slave: Hitch lift cylinder 3.5" x 6", Axle lift cylinders 3.25" x 6" and 3" x 6" |
| Pull package tires | 4 - 16" implement recaps |
| Pull package tire rims | 5 Bolt on 4.5" bolt circle |
| Pull package tongue weight (Includes all boxes without seed) | 1282 lbs |
|
Grass seedbox Small seeds seedbox Optional: Native seedbox |
Water tight construction with paddle type agitating above seed cups. Water tight construction. Water tight construction with agitating paddles above seed cups, and rear walk board. |
|
Seedbox capacity: Grass seed Small seed Native seed |
11.3 bushels 2.6 bushels 12.7 bushels |
|
Lift sling brackets: Grass seedbox Small seeds seedbox Native seedbox |
Two on grass seedbox for lifting grass seedbox or complete NTS Seeder assembly. Two on small seeds seedbox for lifting only the small seeds seedbox. Two on native seedbox for lifting only the native seedbox. |
| Seedbox lids | Heavy duty lid with seed splash guard. |
| Individual seedbox lockouts | Spring loaded lock in/out pins for each seedbox drive. |
| All seeds drive sprocket with patented lockout clutch |
Spring-loaded dogs in lockout clutch drive all seedboxes while traveling forward only. Spring loaded lock in/out pin engages and disengages power all seedboxes. |
|
Number of seed cups Grass seed Small seed |
18 18 |
|
Seed cups: Grass & small seed Native seed |
Fluted for accurate metering Meter sprocket |
|
Seed cup settings Grass seed Small seed Native seed |
0 to 100 Adjustment lever, 4 position seed cup door, and high/low sprocket speed. 0 to 100 Adjustment lever. 4 Sprocket speeds and 4 gearbox speed changes. |
| Seed cup drive |
Rear roller ground drive metering with #40 roller chain, high/low speed change sprocket, take-up idler, & seed drive shut-off pin. |
|
Seed cup drive speeds: Grass seed Small seed & native seed |
Standard speed change sprocket can be set for low speed or high speed. Reduction speed change sprocket must be set for low speed only. Speed change sprocket must be set for low speed when these seedboxes are in use |
| Seed drop protection | Wind guarded |
| Front rollers |
Two 8 5/8" diameter spiked rollers capable of angling from 0 to 18 degrees each and mounted on 1 1/4" greasable ball bearings. |
| Rear packer roller | Straight 11 3/8" diameter notched cast gray iron packer rings. |
| Number of rear rollers | 2 |
| Rear roller mounting | Mounted on floating 1" greasable ball bearings. |
| Roller spikes | Constructed of replaceable 1/2" x 2" heat treated steel. |
| Mud scrapers | Bolt on mud scrapers on front and rear rollers. |
|
Signal lights 7 Pin connector |
LED (light-emitting diode) SAE J560 pin configuration |
| Acremeter option | Digital, battery operated. |
