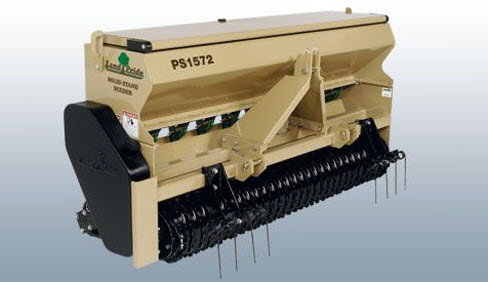

Land Pride PS1572
Features
FEATURES | BENEFITS |
Cat. 1 Hitch | Fits Land Pride Quick-Hitch for easy one person hook-up to tractor. |
70 1/2" Seeding width | Perfect size for landscape market. Sized for smaller areas such as between the curb and sidewalk or the new community park. |
Approximate machine weight | 1,165 lbs. Heavyweight helps seed to soil contact. |
Lift hooks | Lift hooks on each side of the seedbox to attach chain or strap to for easy loading and unloading. |
Heavy-duty lids with stay open support | Lids are precision fit to keep seeds dry and rodents out and they won't buckle or slam shut in high winds. |
Seed splash guard | Seedbox lid has a guard to prevent seed from being spilled between lid and box. |
Water tight Seedbox | All-welded seedbox construction. Keeps moisture out of the seedbox. |
Easy seed box clean out | Seed flute is designed for easy clean out. Simply move the flute lever into the clean out position and all seeds will be removed. |
Large seedbox capacity | One bushel per foot. Keeps filling to a minimum and increases productivity. |
Grass seed cups | Grass seed model uses 10 proven fluted seed cups for accurate seed rates. |
Seed box agitator | Eliminates bridging of seed. |
Powdered metal in fluted sprockets | Helps dissipate heat from the fluted area and plastic seed cup housing. |
Wind guarded seed drop | Protects the seed from being blown away by windy conditions. Ensures constant placement of seed across the whole width of the machine. |
Seed rate adjustment | Easy adjustment of seed rates. Lever position is located on seed rate chart. |
Seed rate decal | Positioned on lid. Easy access to seed rate information. |
High/Low seed settings | Easy adjustment on sprocket arrangement on seed cup drive. This allows for a very broad range of seed settings. |
Ground driven metering | Front packer rollers are in constant contact with the ground to ensure consistent metering of seed. Seed metering stops automatically when front packer is raised off the ground. |
Cast iron front packer rollers | 12" diameter front rings and 9 1/2" diameter rear rings are used to crush the clods and pack the seed in to promote seed to soil contact. |
Spring mounted rear packer rollers | Rear packer rollers are spring loaded for additional down pressure, and to stay in contact with the ground. |
Tire track removers | Coil spring tine track removers keep their shape; one on 48" model, two on 72" model allows tractor tire(s) to be scratched out. Additional track removers can be added. |
#40 Roller chain | All drives utilize #40 roller chain for smooth running. |
Spring loaded chain idler | Spring loaded idler keeps constant pressure on chain so seeding rate is consistent. |
Specifications
Tractor Horsepower | 25-60 Horsepower |
Seeding Width (Broadcast) | 70 1/2" |
Overall Width | 79 1/8" |
Overall Height | 38 7/8" |
Overall Length | 29 3/4" |
Empty Weight | 1165# |
Seedbox Capacity | 1 Bushel/Foot (6 bushel) |
3-Point Tractor Hitch | Category 1; Quick Hitch Adaptable |
Main Seedbox Construction | Continuous welded for water tight construction |
Lid construction | Heavy duty precision fit with seed splash guard |
Ground Drive Metering | Driven from right side of front roller with #40 Roller chain |
Seed Cup Drive | Chain Driven from right side of front roller |
Seed Cup Agitation | Chain driven paddle type agitators above seed cups |
Seed Cups | 10 Fluted cups for Accurate Metering |
Seed Settings | Wide range of calibration |
Seed Drop | Wind guarded |
Track Removers | Double torsion spring height adjustable and replaceable Two each |
Bed Forming Front Packer Rollers | 12" OD notched, cast iron, 29 each with free-floating mounting tube and 1 1/2" sealed greasable bearings. |
Rear Packer Rollers | 9 1/2" OD notched, cast iron, 30 each with free-floating mounting tube and 1" greasable bearing mounted on pivoting spring-loaded arms. |
