Land Pride RBT4084 / NOT AVAILABLE

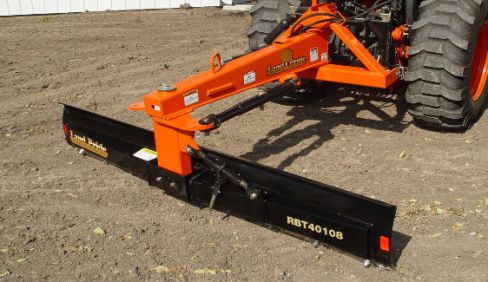

RBT40 Series Rear Blades RBT4084
Overview:
Land Pride’s RBT40 Series 3-Way Hydraulic Rear Blades are built tough from the ground up for applications ranging from landscaping, construction, snow removal, and feedlot cleaning. Designed to handle 100 HP tractors, this blade is also ideal for ditching, road grading and all-around farm use. By using hydraulics at al... + Read More
Features
| Features | Benefits |
| Warranty | One year parts & labor. See warranty page for complete details. |
| 84", 96", 108" Working widths | Choice of three sizes to pick from. All sizes handle large capacities. |
| 65 to 100 hp rating | Fits a wide variety of tractors. |
| Cat. 1 or 2 | Fits wide variety of tractors. |
| Fits Land Pride quick hitch | Quick and easy attaching without leaving tractor seat. |
| 3-Way blade | Tilt, angle and offset features available hydraulically or manually |
|
Blade angles left and right up to 45o in either direction |
(15 positions manually: Center, 7 clockwise, and 7 counterclockwise) (Hydraulically: Any degree up to 45 degrees) Allows operator to set the blade at the angle of his choice up to 45o to move the desired amount of material with satisfactory results. |
| Blade offsets left and right up to 30" |
(15 positions manually: Center, 7 positions left, and 7 positions right) (Hydraulically: Any position up to 30") Allows the operator to position the end of the moldboard beyond tractor tire and close to solid obstacles such as fences, buildings, and abutments. |
| Blade tilts up and down up to 15o | Allows the operator to do simple tasks such as putting a crown in the middle of a road to making V-type ditches of various sizes. |
| Fully welded main frame | Fully welded adds overall strength and rigidity to blade frame |
| Heavy-duty pivot assembly with 3 1/8" solid steel kingpin | 3/4" Plate steel turntable and 3 1/8" kingpin for handling the high amount of torque that can be transferred to this area. |
| Formed 17 inch moldboard | Precisely formed moldboard rolls dirt and debris with ease. |
| 5/16" Moldboard thickness with box reinforcement | Thick material with fully welded box reinforcement creates a strong moldboard to handle tough jobs. |
| Reversible cutting edge | Get twice the wear from the cutting edge by flipping it over |
| Retractable parking stand | Able to store the unit with the frame off the ground, also aids in attaching to tractor. |
Specifications
| Model | RBT4084 |
| Blade Width | 84" |
| Approximate Weight (lbs.) w/manual links | 798 lbs |
| Maximum Engine Horsepower | 100 HP - 2 Wheel drive |
| Maximum G.V.W. (lbs.) | 9500 lbs. |
| Hitch Type | Cat. 1 & 2; Fits Land Pride Quick Hitch |
| Blade angle Manual linkage: Hydraulic cylinder: |
With blade facing forward or reversed Up to 45° in 15° increments clockwise and counterclockwise in either direction Up to 45° clockwise and counterclockwise in either direction |
| Angle Cylinder | 3 1/2" X 16" X 1 1/4" |
| Blade offset Manual ratchet jack: Hydraulic cylinder: |
Maximum 15o up and 15o down with blade facing forward or reversed Maximum 15o up and 15o down with blade facing forward or reversed |
| Offset Cylinder | 3 1/2" X 16" X 1 1/4" |
| Tilt Angle Manual ratchet jack Hydraulic cylinder |
Maximum 15° up and 15° down with blade facing forward or reversed Maximum 15° up and 15° down with blade facing forward or reversed |
| Tilt Cylinder | 3" X 6" X 1 1/4" |
| Moldboard Height | 17" |
| Moldboard Thickness | 5/16" reinforced, 1/4" tapered reinforcement channel |
| MoldBoard Kingpin | 3" |
| Cutting Edge | 1/2" x 6" Heat treated reversible blade |
| Main Frame | Fully enclosed welded, formed box |
| Parking Stand | Retractable |
| Accessories | Skid Shoes, End Plates, Hydraulic Selector Valve and Hydraulic Cushion Valve |
