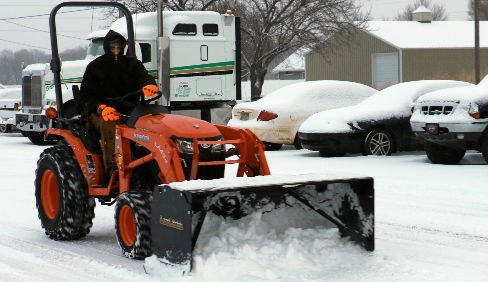

Land Pride SPL1060

Double tap to zoom



Features

Features Benefits
Universal quick-attach hitch Quick and easy to hook-up. Fits tractor loaders with a universal quick-attach hitch.
1/4" Heavy side panels Built heavy to handle the tough jobs.
Bracing on side panels and back Reinforces side panels and back for a stronger unit.
1/4" Formed back plate at blade mount Makes for a strong moldboard.
Reversible skid shoes Skid shoes wear faster at the leading edge. Skid shoes that can be reversed will last longer than non-reversible skid shoes.
Replaceable skid shoes Skid shoes can be replaced before side panels start to wear on the bottom edge.
Skid shoes are constructed of AR400 steel Abrasion resistant material extends wear life.
Options
Adjustable rubber blade The blade can be adjusted down as it wears to extend its life.
Reversible rubber or steel blades The blades can be reversed to extend life fo the blades.
Replaceable rubber or steel blades The blades can be replaced to extend the life of the Snow Pusher.
Pull back with 1/2" weld-on steel blade Used to pull snow away from structures such as garage doors.
28" High orange marker (Accessory) Assist in locating outer ends of the Snow Pusher when approaching buildings, trees, poles, and other obstacles that can damage equipment.

Specifications

Model Numbers SPL1060
Working width 60"
Capacity (approximate) 22 ft³
Weight
with rubber blade 321 lbs
with steel blade 346 lbs
Weight of pull back option 104 lbs
Horsepower range 25-40 HP
Operating weight of carrier 3,000 lbs. Maximum
Lift capacity of carrier 1,200 lbs. Maximum at pivot pins
Hitch type Universal quick-attach hitch
Skid shoes AR400 1/2" x 4" reversible & replaceable
Moldboard thickness 10 Ga.
Side panel thickness 1/4"
Rubber blades (option) 1" x 8" Rubber with adjusting slots; Reversible and replaceable blade
Steel blades (option) 1/2" x 6" Reversible and replaceable blade(s)
Pull back (option) 1/2" x 4 3/8" Steel blade
Orange marker (accessory) 28" Tall, bolts to the side panels
