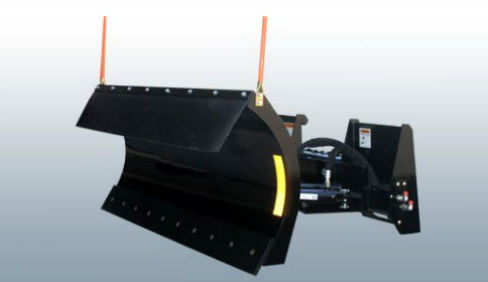

Land Pride STB1560

Double tap to zoom

Features	Benefits
Reinforced 10 gauge moldboard design	Provides added strength and durability.
Choice of 60", 72", 84" or 96" working widths	Allows customers to choose the blade that meets their operational needs.
Double-acting angling cylinders (dual)	Easily enables up to 30 degrees of angling to left or right distributing the load where you want it to go.
Trip design with springs	Protects the structural integrity of the blade while still maintaining load control no matter what the bottom edge encounters.
Easy-attaching mounting system	Adapted for tractor loaders with quick-attach front mounting plates.
Replaceable bottom wear edge	Offered in steel or heavy-duty poly construction to match ground & surface operating conditions.
Skid shoes	Offered as standard equipment. Establish lower limits of blade operation to prevent surface gouging or cutting too deep. Also provides protection to the moldboard as cutting edge wears.
Blade marker	Provides operator with improved awareness and visibility of outermost edges of the blade bottom to prevent unwanted contact with ground obstacles.
Optional top mounted rubber deflector	Helps prevent snow from over-topping the moldboard in deeper snow conditions.
Side float	Allows the blade to follow the ground contour.
Locking system	Allows for light blading.
Cushion valve	Helps protect the moldboard and cylinders in the event an obstruction is hit, by allowing hydraulic fluid to bypass the cushion valve and flow back to the tractor.

Model Numbers	STB1560
Tractor Horsepower	30 to 70 HP
Moldboard Thickness	10 Ga.
Blade Width (Maximum Cutting Width)	60"
Cutting Width @ 30° Angle	52"
Moldboard Height (With Blade)	26 1/2"
Maximum Blade Angle	30° left & 30° right
Angle Cylinder Size	2" bore x 6" stroke
Maximum Hydraulic Pressure	3000 psi
Cutting Edge (Steel & Poly)	1/2" x 6"; replaceable & reversible
Trip Release Pressure	1200 lbs
Base Unit Weight
With Steel Cutting Edge	583 lbs
With Poly Cutting Edge	594 lbs
