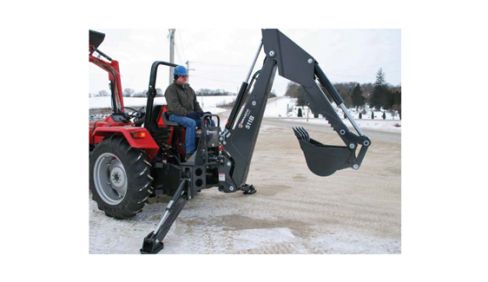

Paladin Attachments 3511B Backhoe
Backhoe 3511B Backhoe
Overview:
Dual-cylinder swing system with cushioned stop design provides maximum power. Provides optimum performance with 9 to 12 GPM hydraulic system. Replaceable steel bushings in all major pivot points. Standard swing speed consrol. Large-diameter boom and dipper cylinder with cushioned stop design.
Features
- Fits compact tractors with three-point-Cat II hitch
- 133" max digging depth
- 4,768 lbs. max digging force
- Fold-down stabilizers
- 12" to 38" buckets available
Specifications
| Transport | |
| Transport Height (with boom fully retracted) | 106" |
| Transport Width (with stabilizers up) | 60" |
| Ground clearance | 11" |
| Overall Length | 93" |
| Boom pivot height | 16" |
| Operating weight with 12" bucket | 1,594 lbs. |
_
| Operational | |
| Digging Depth Maximum | 133" |
| Digging Depth (2 ft.) Flat Bottom | 132" |
| Digging Depth (8 ft.) Flat Bottom | 119" |
| Overall operating height - fully raised | 173" |
| Loading Height | 96" |
| Loading Reach | 60" |
| Reach from swing post | 173" |
| Bucket rotation | 180º |
| Swing Arc | 180º |
| Straight wall digging depth | 98" |
| Stabilizer spread operating position | 95" |
| Stabilizer down below grade | 16" |
| System relief valve setting | 2,100 PSI |
| Digging force - bucket cylinder | 4,768 lbs. |
| Digging force - dipper cylinder | 2,567 lbs |
_
Capacities
| Bucket Size |
a. 12" b. 16" c. 18" d. 20" e. 24" f. 34" g. 36" h. 38" |
| Struck Cap. ft3 |
a. 1.43 b. 1.98 c. 2.25 d. 2.52 e. 3.07 f. 4.23 g. 4.48 h. 4.73 |
| Heaped Cap ft.3 |
a. 1.83 b. 2.56 c. 2.98 d. 3.40 e. 4.32 f. 5.80 g. 6.14 h. 6.48 |
| Weight lbs |
a. 140 b. 154 c. 162 d. 168 e. 185 f. 238 g. 257 h. 269 |
| Number of teeth* |
a. 3 b. 3 c. 4 d. 4 e. 5 f. 7 g. 7 h. 7 |
