Paladin Attachments Backhoe 509B
Bradco SS/TR Backhoe Backhoe 509B
Overview:

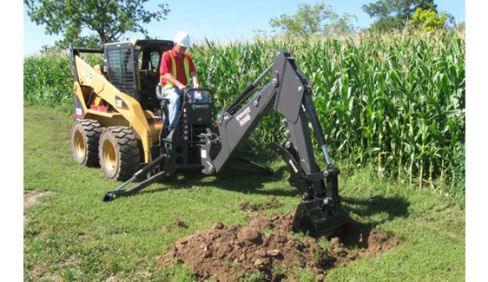

The 509B Backhoe has a 116" maximum digging depth with 12" to 38" buckets available.
Features
- Fits SSL and compact tractor loaders
- 116" max digging depth
- 5,676 lbs. max digging force
- Fold-down stabilizers
- 12" to 38" buckets available
Specifications
| Transport | |
| Transport Height (with boom fully retracted) | 93" |
| Transport Width (with stabilizers up) | 60" |
| Ground clearance | 11" |
| Overall Length | 91” |
| Boom pivot height | 16" |
| Operating weight with 12" bucket | 1,425 lbs |
| Operational | |
| Digging Depth Maximum | 116" |
| Digging Depth (2 ft.) Flat Bottom | 115" |
| Digging Depth (8 ft.) Flat Bottom | 99" |
| Overall operating height - fully raised | 154" |
| Loading Height | 82" |
| Loading Reach | 50" |
| Reach from swing post | 153" |
| Bucket rotation | 180º |
| Swing Arc | 180º |
| Straight wall digging depth | 87" |
| Stabilizer spread operating position | 95" |
| Stabilizer down below grade | 16" |
| System relief valve setting | 2,500 PSI |
| Digging force - bucket cylinder | 5,676 lbs. |
| Digging force - dipper cylinder | 2,754 lbs.. |
