Paladin Attachments Backhoe 511B
Bradco SS/TR Backhoe Backhoe 511B
Overview:

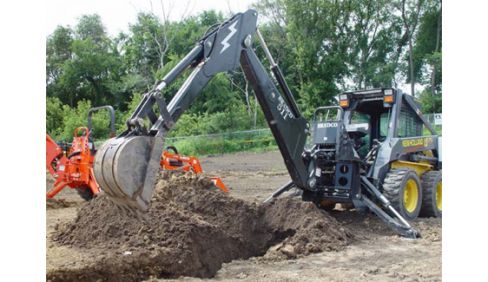

The Bradco 511B Backhoe is ideal for farming, light construction and landscaping for users that include golf courses, nurseries, utility companies and cemeteries. Optimum performance with 9 to 12 GPM hydraulic systems.
Features
- Fits SSL and compact tractor loaders
- 132" max digging depth
- 5,676 lbs. max digging force
- Fold-down stabilizers
- 12" to 38" buckets available
Specifications
| Transport | |
| Transport Height (with boom fully retracted) | 106" |
| Transport Width (with stabilizers up) | 60" |
| Ground clearance | 11" |
| Overall Length | 93" |
| Boom pivot height | 16" |
| Operating weight with 12" bucket | 1,594 lbs. |
| Operational | |
| Digging Depth Maximum | 133" |
| Digging Depth (2 ft.) Flat Bottom | 132" |
| Digging Depth (8 ft.) Flat Bottom | 119" |
| Overall operating height - fully raised | 173" |
| Loading Height | 96" |
| Loading Reach | 60" |
| Reach from swing post | 173" |
| Bucket rotation | 180º |
| Swing Arc | 180º |
| Straight wall digging depth | 98" |
| Stabilizer spread operating position | 95" |
| Stabilizer down below grade | 16" |
| System relief valve setting | 2,500 PSI |
| Digging force - bucket cylinder | 5,676 lbs. |
| Digging force - dipper cylinder | 3,056 lbs. |
