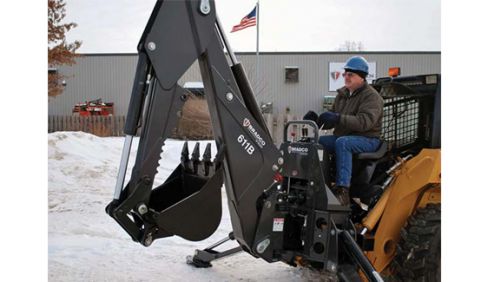

Paladin Attachments Backhoe 611B
Bradco SS/TR Backhoe Backhoe 611B
Overview:
The 611B Backhoe provides the best bucket digging force for a four-bar linkage backhoe in its class. The 611B is designed to work as hard as you do, and its long reach from the swing post allows you to place material further from the excavation. Bradco's high-capacity buckets mean that you will spend more time digging ... + Read More
Features
- Fits SSL and compact tractor loaders
- Reinforced boom
- 132" max digging depth
- 6,200 lbs. max digging force
- Fold-down stabilizers
- 12" to 38" buckets available
Specifications
| Transport | |
| Transport Height (with boom fully retracted) | 106" |
| Transport Width (with stabilizers up) | 57" |
| Ground clearance | 11" |
| Overall Length | 93" |
| Boom pivot height | 16" |
| Operating weight with 12" bucket | 1,930 lbs. |
| Operational | |
| Digging Depth Maximum | 133" |
| Digging Depth (2 ft.) Flat Bottom | 132" |
| Digging Depth (8 ft.) Flat Bottom | 119" |
| Overall operating height - fully raised | 173" |
| Loading Height | 96" |
| Loading Reach | 60" |
| Reach from swing post | 173" |
| Bucket rotation | 180º |
| Swing Arc | 180º |
| Straight wall digging depth | 98" |
| Stabilizer spread operating position | 119" |
| Stabilizer down below grade | 17" |
| System relief valve setting | 2,750 PSI |
| Digging force - bucket cylinder | 6,200 lbs. |
| Digging force - dipper cylinder | 4,350 lbs. |
