Paladin Attachments Model 612
Trenchers Model 612
Overview:

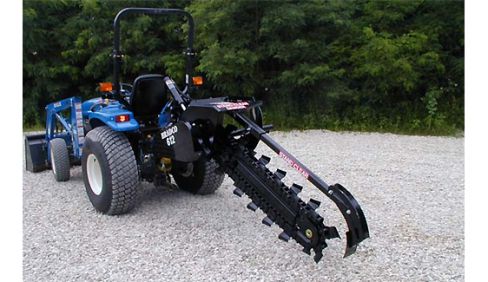

The Bradco 612 Trencher uses a Category 1, three-point mount for 20–45 PTO HP hydrostatic tractors. This product is also available CE certified.
Features
- PTO shaft-drive with heavy-duty slip clutch for overload protection
- Gearbox drive with chain reduction to the head-shaft gives productive digging chain speed
- 24" discharge auger places dirt well away from the trench
- Several tooth options available; Cup, Shark, Rock & Frost
- 50,000 lb 2" anti-back flex-chain
- Two-year limited warranty
Specifications
| Model | 612 |
| Category I | |
| 3-Point Mounting | |
| Trench Depth | 30”, 36”, 48”, 60” |
| Trench Width | 6”, 8”, 10”, 12” |
| Trenching Angle | 65º |
| Auger Diameter | 24" |
| Width | 43” |
| Headshaft Height (auger at grade) | 12" |
| 3-point Length to Headshaft | 24" |
| Spoil Discharge Reach | 29" |
| Transport Height | varies |
| Center of Trencher to End of Auger | 27" |
| Trencher Length with 4' boom | 96" |
| Maximum Trenching Depths Based on Trench Width | |
| 6" wide | 60" deep |
| 8" wide | 48" deep |
| 10" wide | 36" deep |
| 12" wide | 30" deep |
| Digging Chain Specifications | |
| Double standard, anti-backflex | 50,000 lbs |
| Standard chain pitch | 2” |
