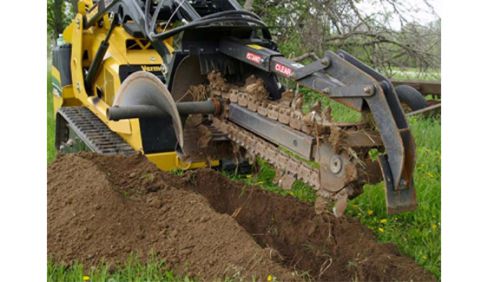

Paladin Attachments Model 615
Features
- Two motor options match the flow of many skid steer loaders
- Fixed length booms available featuring spring-loaded, self adjusting idler with full rock guards
- 50,000 lb 1.65" anti-back flex-chain for tooth pattern versatility to support many soil types and conditions
- 615F footing trencher offset allows cut outside skid steer tread up to 72" width
- Allows tight fit with single-side spoil augering
- Replaces dedicated machines at a fraction of the cost
- 615F with offset auger and side shielding allow for trenching next to footing form boards
- Two-year limited warranty
Specifications
Model | 615 | |
Boom Size |
a. 24" b. 30" c. 36" |
|
Chain Widths |
a. 6", 8", 10", 12" b. 6", 8", 10" c. 4.5", 6", 8" |
|
Trenching Angle |
a. 65º b. 65º c. 65º |
|
Headshaft Height (Auger Touching Ground) |
a. 10" b. 10" c. 10" |
|
Overall Length |
a. 51" b. 58" c. 65" |
|
Overall Width |
a. 42" b. 42" c. 42" |
|
Overall Height |
a. 28" b. 28" c. 28" |
|
Spoil Discharge Reach |
a. 24" b. 24" c. 24" |
_
Model | 615F |
Boom Size |
a. 24" b. 30" |
Trench Depth with Auger at 65º Digging Angle |
a. 24" b. 30" |
Chain Widths |
a. 6", 8", 10", 12" b. 6", 8", 10" |
Trenching Angle |
a. 65º b. 65º |
Headshaft Height (Auger Touching Ground) |
a. 17" b. 17" |
Overall Length |
a. 65" b. 72" |
Overall Width |
a. 26" b. 26" |
Overall Height |
a. 29" b. 29" |
Spoil Discharge Reach |
a. 18" b. 18" |
Hydraulic System | |
GPM Requirements | 6-10 or 10-16 GPM |
Operating Pressure | 2000 to 3000 PSI |
