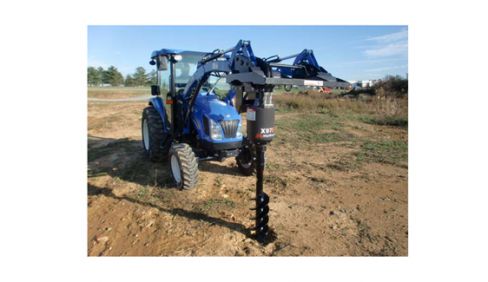

Paladin Attachments Augers, X975

Double tap to zoom



Features

  • All 75 Series hydraulic motors drive the auger through a sealed planetary gear reduction
  • The heavy-duty, all-gear design gives these units a long life with minimal maintenance and service costs
  • Completely sealed, with all moving components running in oil for total lubrication on a constant basis
  • Features reverse rotation for quick backout when obstructions are encountered
  • The system's hydraulic relief valve protects the units from damage when the auger hits large, immovable objects

Specifications

Maximum auger diameter 24" | 610 mm
Minimum hydraulic flow 6 GPM | 30 LPM
Maximum hydraulic flow 15 GPM | 57 LPM
Max. Continuous Operating PSI 3000 PSI | 207 bar
Output shaft options 2 9 /16” round, and 2” hex | 65 mm, 51 mm

Output Speed

Flow 6 GPM | 23 LPM
Speed 36 RPM

_

Flow 8 GPM | 30 LPM
Speed 47 RPM

_

Flow 10 GPM | 38 LPM
Speed 60 RPM

_

Flow 12 GPM | 45 LPM
Speed 71 RPM

_

Flow 15 GPM | 57 LPM
Speed 89 RPM

_

Output Torque

Pressure 2000 PSI | 141 BAR
Torque 1000 lb. ft. | 1356 N. m.

_

Pressure 2500 PSI | 176 BAR
Torque 1277 lb. ft. | 1731 N. m.

_

Pressure 3000 PSI | 211 BAR
Torque 1500 lb. ft. | 2034 N. m.
