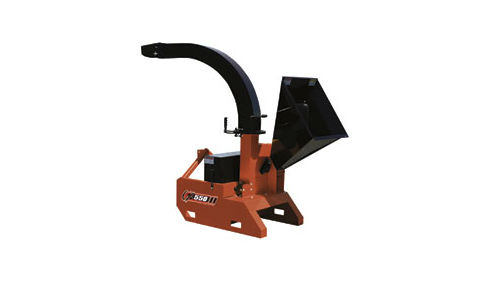

Pequea CX550 Gravity Feed

Double tap to zoom



Features

  • Accepts material up to 5" in diameter
  • 3 Point Hitch PTO Drive (25-60 HP Required)
  • 360 degree chip chute rotation
  • 4 reversible knives mounted with recessed bolts (no threaded knives)
  • Adjustable and reversible chip anvil
  • Easy to remove shields access the 3 cogged v-belt drive
  • High Speed 1700 RPM rotor requires less horsepower to operate while throwing the chips 10-15 feet farther than direct drive models
  • The rotor shaft is attached with a tapered bushing which perfectly balances the rotor, making this the smoothest running chipper on the market
  • 650 lbs.

Specifications

Specifications CX550
Chip Opening 5 1/2" x 8"
Drive System PTO
Transport 3 Point Hitch
PTO Category Cat. 1 & 2
HP Required 35+
Belts 3 BX
Rotor Size 165 lbs.
Knives** (4) 2 1/2" x 3 1/2" x 5/16"
Knife Bolts 3/8" Recessed & Hardened Bolts
Shear Bar/Anvil Adjustable Hardened Anvil
Feed System Manual Feed
Hyd. Requirements N/A
Self Contained Hyd. System N/A
Feed Roller N/A
Hopper Opening 28" x 28"
Feed Height 41"
Chip Chute 360º Rotation
Finish Industrial Two-Part Urethane
Weight (lbs.) 650
