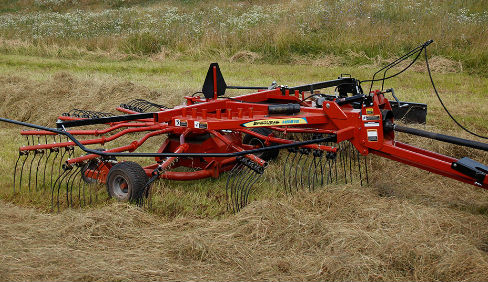

Pequea HR-S15
Rotary Rakes HR-S15
Overview:
The HR-S15 is Pequea's most heavy duty single-rotor rake. From the frame to the gearbox, this rake is built to last. With 13 arms, the S15 features an extra-wide working width of 15'. This rake has everything you could ask for in a single rotor rake: Walking Beams, Level Lift Cylinder, Tilt Cylinder, and a Gearbox Pitc... + Read More
Features
- 13' (HRS15) Clean sweep raking width
- Removable tine arms - (HR1140 & HRS15)
- Tandem axles with 4-bolt wheels - (Standard)
- Exclusive Level-Lift hydraulics
- Sealed gearbox (HRS15)
Specifications
| Working Width | 15' |
| Raking Width | 13' |
| Transport Width | 100" |
| Gearbox | Sealed |
| Gear Reduction | 9.7:1 |
| Number of Rotors | 1 |
| Tine Arms per Rotor | 13 |
| Double Tines per Arm | 4 |
| PTO HP Requirement | 40 HP - 540 RPM |
| Hydraulic Requirement | 1400 psi |
| Direction of Raking Action | Left |
| Weight | 1,900 |
| Axle | Walking Beams |
| Tire and Wheel | 18.5 x 8 Flotation Tire on 4 Bolt Painted Steel Rim |
