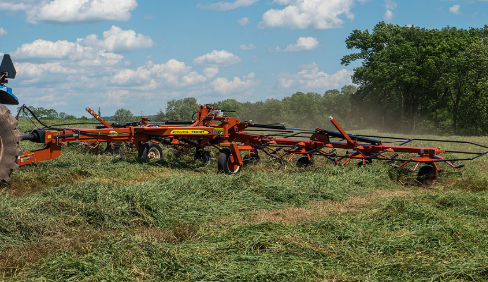

Pequea TT8100 / NOT AVAILABLE

Double tap to zoom



Features

  • Fully enclosed gear boxes
  • Standard tilt cylinder
  • Heavy-duty hubs with four bolt rims
  • Large dish and 7 heavy pipe arms per rotor



The five solid foundations of every tedder

  • Finger joints with ball bearing optimize pivot points
  • 18.5" x 8" Heavy Duty tires come standard on a 4-Bolt Hub with tapered bearings
  • Pivots pins o both sides are equipped with greased zerks, allowing for quick and easy lubrication
  • Internal view of rotary gearbox and hexagonal shaft
  • Front tilt cylinder adjusts rotor angle

Specifications

Specifications TT8100
Working Width          35'
Transport Width 11' 6" Carted
Overall Transport Length 19' 4"
Number of Rotors 6
Tine Arms per Rotor     7
Linkage Trailed
Rotor Tire 18.5 x 8
Weight  lb
Hydraulic Requirement 1,200 psi
PTO Power Requirement    45 hp
Rotor Gearbox Enclosed Grease
Center Gearbox Oil Bath
Tine Arm Material 1" Schedule 80 Pipe
Rotor Spindle Wheel Hub     4-Bolt with Tapered Bearings
Transport Lights Optional
