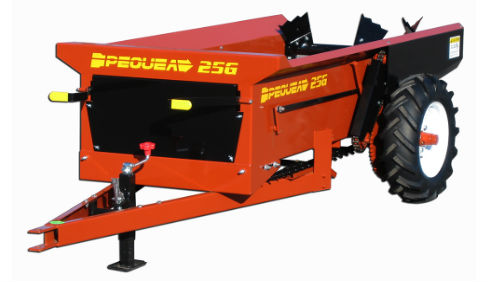

Pequea 25G

Double tap to zoom



Features

  • Offer wide and even spread pattern
  • Engineered for maximum application
  • Constructed of durable 1/4" steel
  • Detachable for easy replacement if necessary

Specifications

Specifications 25G
Struck Capacity          18 cu. ft.
Heaped (Old Rating) Capacity     25 Bu.
Overall Length 9' 6"
Overall Width 44"
Loading Height 30"
Flared Width 34"
Box Width 28"
Box Length 66"
Box Height 16"
Box Construction  Fully Welded 12 Ga. Steel
Floor Construction High Density Poly Vinyl 3/4" T & G
Beater Paddles 8 Replaceable
Beater Diameter 18"
Drive 2 Wheel Ground Drive
Apron Chain     5/16" T-Rod
Spindle 1-1/4"
Wheels/Tires 6 x 12 Traction Tire on 12 x 6-4 Bolt Hub
Jack 1,000 lb
Weight with Tires 425 lb
Tongue Weight Empty 35 lb
Tongue Weight Loaded      50 lb
PTO Power Required N/A
