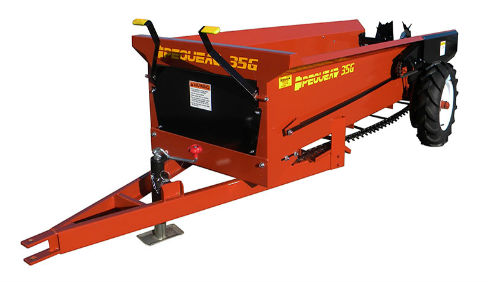

Pequea 35G
Compact Spreaders 35G
Overview:
For the equine enthusiast or gentleman farmer Pequea's model 25G to 80PTO manure spreaders demonstrate big abilities in a compact size. Easily maneuvered in tight spaces, these compact manure spreaders allow for in-stall loading, making clean out easy and efficient.
Features
- Offer wide and even spread pattern
- Engineered for maximum application
- Constructed of durable 1/4" steel
- Detachable for easy replacement if necessary
Specifications
| Specifications | 35G |
| Struck Capacity | 25 cu. ft. |
| Heaped (Old Rating) Capacity | 35 Bu. |
| Overall Length | 11' 6" |
| Overall Width | 44" |
| Loading Height | 30" |
| Flared Width | 34" |
| Box Width | 28" |
| Box Length | 66" |
| Box Height | 16" |
| Box Construction | Fully Welded 12 Ga. Steel |
| Floor Construction | High Density Poly Vinyl 3/4" T & G |
| Beater Paddles | 8 Replaceable |
| Beater Diameter | 18" |
| Drive | 2 Wheel Ground Drive |
| Apron Chain | 5/16" T-Rod |
| Spindle | 1-1/4" |
| Wheels/Tires | 6 x 12 Traction Tire on 12 x 6-4 Bolt Hub |
| Jack | 1,000 lb |
| Weight with Tires | 575 lb |
| Tongue Weight Empty | 45 lb |
| Tongue Weight Loaded | 80 lb |
| PTO Power Required | N/A |
