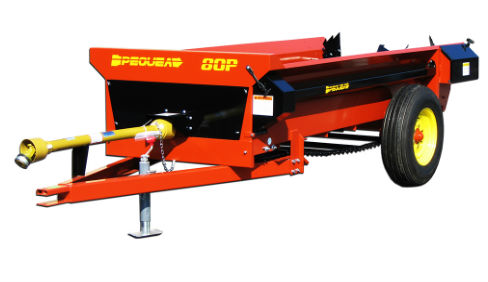

Pequea 80P
Compact Spreaders 80P
Overview:
For the equine enthusiast or gentleman farmer Pequea's model 25G to 80PTO manure spreaders demonstrate big abilities in a compact size. Easily maneuvered in tight spaces, these compact manure spreaders allow for in-stall loading, making clean out easy and efficient.
Features
- Offer wide and even spread pattern
- Engineered for maximum application
- Constructed of durable 1/4" steel
- Detachable for easy replacement if necessary
Specifications
| Specifications | 80P |
| Struck Capacity | 57 cu. ft. |
| Heaped (Old Rating) Capacity | 80 bu. |
| Overall Length | 14' 4" |
| Overall Width | 60-1/2" |
| Loading Height | 39" |
| Flared Width | 47-1/2" |
| Box Width | 40" |
| Box Length | 104" |
| Box Height | 20" |
| Box Construction | Fully Welded 12 Ga. Steel |
| Floor Construction | High Density Poly Vinyl 3/4" T & G |
| Beater Paddles | 8 Replaceable |
| Beater Diameter | 21" |
| Drive | PTO with 1 Speed Gearbox |
| Apron Chain | 7/16" T-Rod |
| Spindle | 1-3/4" |
| Wheels/Tires | 9.50 x 15 Implement Tire on 15 x 6-6 Bolt Hub |
| Jack | 2,000 lb |
| Weight with Tires | 1,125 lb |
| Tongue Weight Empty | 60 lb |
| Tongue Weight Loaded | 100 lb |
| PTO Power Required | 18 HP |
