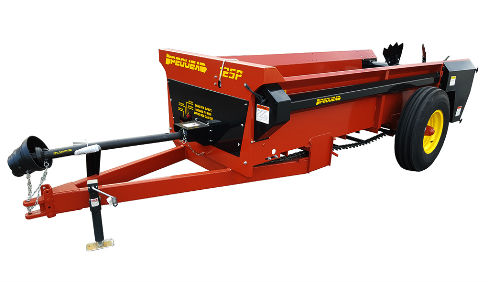

Pequea 125P
Manure Spreaders 125P
Overview:
With a 125 bushel capacity, Pequea's 125P is designed to withstand the demands of today's small to mid-size farm. The manure spreader box is constructed of fully welded 10 Gauge High Strength steel. Our large PTO model manure spreaders include 2 speed gearboxes, with a neutral and cleanout setting. Pequea manure spread... + Read More
Features
- Offer wide and even spread pattern
- Engineered for maximum application
- Constructed of durable 1/4" steel
- Detachable for easy replacement if necessary
Specifications
| Specifications | 125P |
| Struck Capacity | 90 cu. ft. |
| Heaped (Old Rating) Capacity | 125 Bu. |
| Overall Length | 16' 6" |
| Overall Width | 76" |
| Loading Height | 45" |
| Flared Width | 56" |
| Box Width | 47" |
| Box Length | 128" |
| Box Height | 23" |
| Box Construction | Fully Welded 10 Gauge High Strength Steel |
| Floor Construction | High Density Poly Vinyl 3/4" Tongue & Groove |
| Beater Paddles | 8 Replaceable |
| Beater Diameter | 26" |
| Drive | PTO with 2 Speed Gearbox |
| Apron Chain | 7/16" T-Rod |
| Spindle | 2-1/8" |
| Wheels/Tires | 10.00 x 16 Implement Tire on 16 x 8-8 Bolt Hub |
| Jack | 2,000 lb |
| Weight with Tires | 1,850 lb |
| Tongue Weight Empty | 110 lb |
| Tongue Weight Loaded | 325 lb |
| Power Required at PTO | 35 HP |
