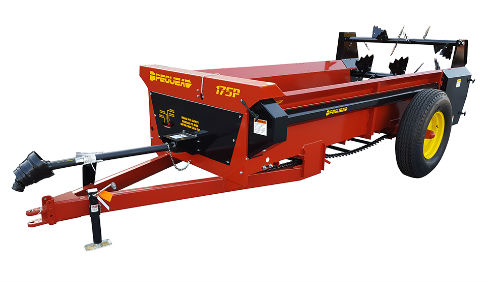

Pequea 175P

Double tap to zoom



Features

  • Offer wide and even spread pattern
  • Engineered for maximum application
  • Constructed of durable 1/4" steel
  • Detachable for easy replacement if necessary

Specifications

Specifications 175P
Struck Capacity          108 cu. ft.
Heaped (Old Rating) Capacity     175 Bu.
Overall Length 17' 8"
Overall Width 86"
Loading Height 44"
Flared Width 66"
Box Width 54"
Box Length 140"
Box Height 24-1/2"
Box Construction  Fully Welded 10 Gauge High Strength Steel
Floor Construction High Density Poly Vinyl 3/4" Tongue & Groove
Beater Paddles 10 Replaceable
Beater Diameter 26"
Drive PTO with 2 Speed Gearbox
Apron Chain     7/16" T-Rod
Spindle 2-1/8"
Wheels/Tires 10.00 x 20 Off-Road Tire on 20 x 7-8 Bolt Hub
Jack 2,000 lb
Weight with Tires 2,220 lb
Tongue Weight Empty 180 lb
Tongue Weight Loaded      400 lb
Power Required at PTO 45 HP
