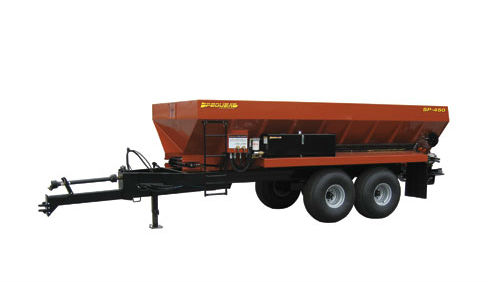

Pequea SP550
Poultry / Litter Spreaders SP550
Overview:
The SP Series Spreaders are Pequea’s latest addition to our line of manure handling equipment. Offered in a 16', 18', 20', and 22' hopper lengths, the SP spreaders bring up to 580 cubic foot hauling capacity along with easy-to-use flow control valves for the apron and spinner speeds. With over 15 different options avai... + Read More
Features
- Truck mount or tandem axle congurations
- 16', 18', 20' and 22' hopper lengths
- Up to 580 cubic foot hauling capacity
- Hydraulic flow controls for quick, fine-tuned adjustment of floor and spinner speeds
- Heavy duty 88k floor chain runs on lifetime poly tongue and groove flooring
- Heavy duty 25" spinner discs ensure a smooth and consistent spread pattern
Specifications
| Hopper Length | 22' |
| Hopper Width (Top) | 96" |
| Overall Height | 91" |
| Overall Length | 32' |
| Overall Width | 99" |
| Struck Capacity | 450 cu. ft. |
| Heaped Capacity | 580 cu. ft. |
| Payload | 27,000 lb |
| Empty Weight | 6,600 lb |
| Chain Width | 35" |
| Heavy Duty Tandem Axle | Standard |
| Sight Window | Standard |
| Floor | 3/4" x 6" Tongue and Groove Poly Floor |
| Chain | Heavy Duty 88K |
| Spinner Disc Diameter | 25" |
| Spinner Disc Thickness | 1/4" |
| Spinner Paddles | 6 Bolt on Reinforced |
| Adjustable Spinners and Spinner Frame | Standard |
